Conrad C72
A high-powered dust suppression cannon, equipped with a 15 kW motor for a range of more than 70 metres: this is the performance of the Conrad C72.
Full automation, slewing, vertical tilt, timer, heated ring and much more.
70mRange
14.700m²Area covered
340°Automatic rotation
60l/minWater consumption
20kWInstalled power
70mrange
Set-ups
On a trolley, on a base or on an arm
Trolley or base

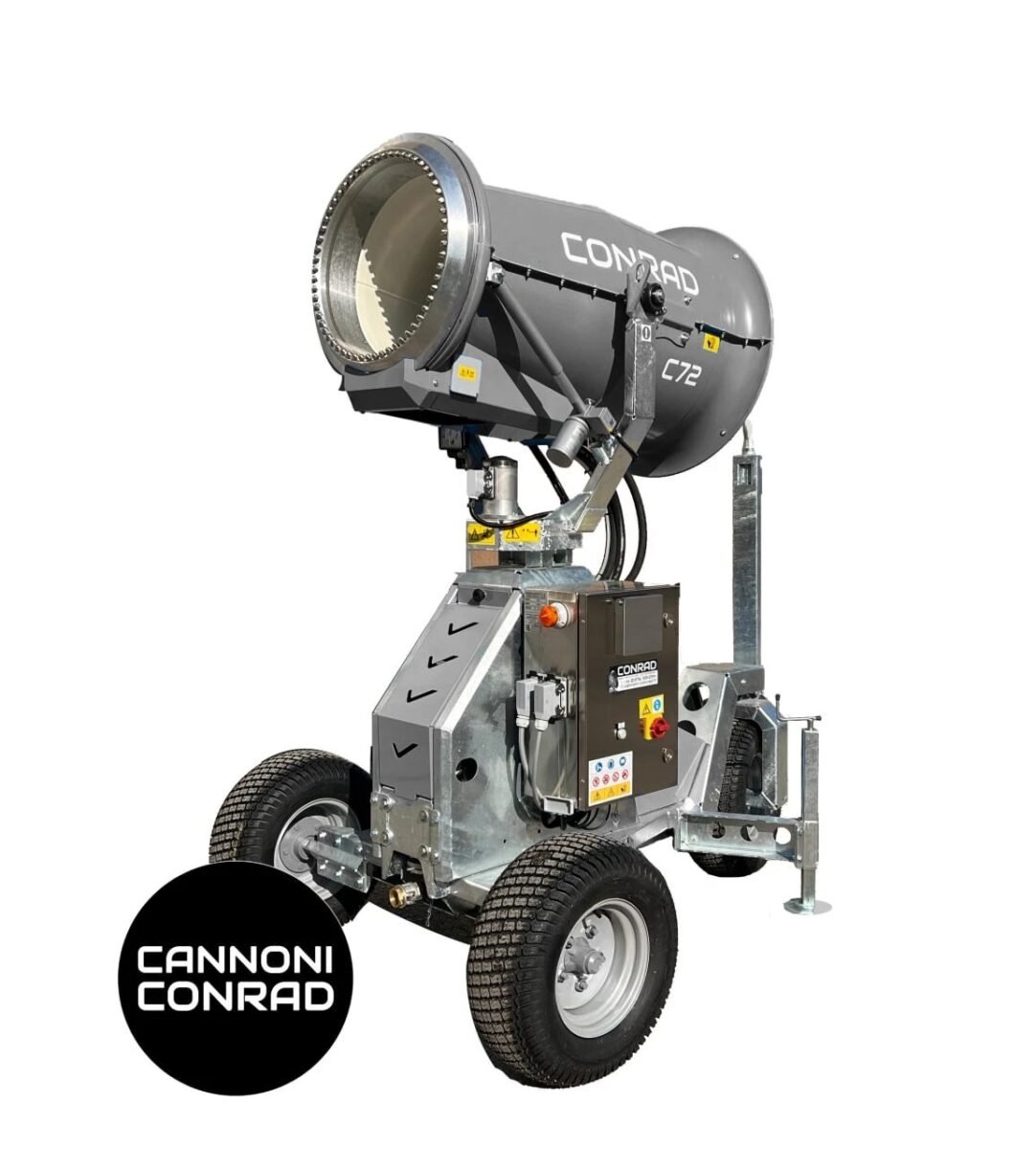

The wheeled set-up of the C72 consists of a sturdy galvanised base with 3 pneumatic wheels, 2 stabilisers and a drawbar suitable for slow towing with construction machinery.
This version can easily be converted to the base set-up if a fixed position is needed. The three wheels, drawbar and stabilisers can be removed and three feet can be fitted at the three ends to keep the cannon fixed and stable.
On an articulated arm
The articulated arm version is one of the most popular choices for the C72 dust suppression cannon, often combined with custom autonomous station solutions. The arm, raised by a pantograph, reaches a height of about 5.5 m, so the dust can be hit from above.
In some special applications, a trolley has been fitted at the base of the cross-shaped structure together with 4 stabiliser feet.
PLC

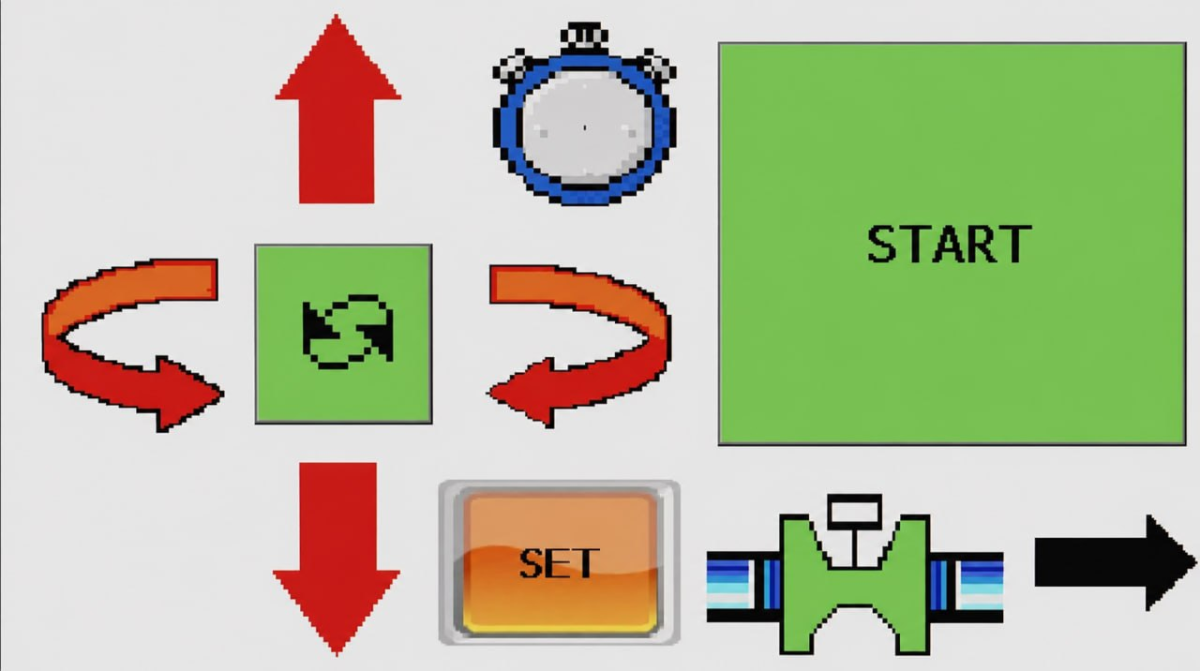

All C72 configurations come with a PLC with a touch screen interface. The operator can switch the pump and fan on and off, set the rotation angle, adjust the rotation speed, tilt the cannon head vertically, switch the light on and off, raise and lower the articulated arm, select the active nozzles, switch on the ring heating, enable or disable the radio remote control (optional), set working time slots and the work cycle function.
Optional extras
Optional extras available
Dosing pump
The C72 can be fitted with a dosing pump for odour control or water treatment applications.
Radio remote control
This model can be fitted with a radio remote control to operate the automatic functions from a distance, for example to direct the mist jet precisely straight from the excavator cab. The radio remote controls selected by the Cannoni Conrad team are high quality and suited to industrial environments.
Anemometer and wind station
The PLC installed on the C72 dust suppression cannon is ready for connection to an anemometer and a weather station for wind monitoring. This configuration makes it possible to control when misting is activated according to the wind speed measured in the work area, based on preset operating thresholds.
Technical specifications
Data sheet
70 mRange
14,700 m²Area covered
340°Automatic rotation
60 l/minWater consumption
Documents
Technical data sheetPDF · 149.1 KBDownload| Range | 70 m |
|---|---|
| No. of nozzles | 60 - selectable in groups of 20|20|20 |
| Nozzle rings | 1 aluminium nozzle ring - heated by an electric heating element for sub-zero operation. |
| PLC automation | integrated PLC electronics, Headlight switch-on, Water pump switch-on, Nozzle ring heating switch-on, Fan switch-on, Pause/Work function, Rotation setting from 0° to 340°, Articulated arm up/down, Daily and weekly timer, selectable active nozzles |
| Rotation | 340° automatic with servo motor |
| Tilt | -20° +45° electric, adjustable via PLC |
| Raise / Lower | only with the articulated arm configuration - reachable working height 5.5 m |
| Pressure | 10-15 bar, 50-60 bar |
| Water Consumption | 60 l/min |
| Area covered | 14700 m² |
| Fan power | 15 kW-400V-50Hz |
| Ø FAN | 660 mm |
| Total installed power | 20 kW |
| Electrical connection | CEE 63A |
| IP | 65 |
| Noise | 70 dB |
| Water Filter | Inspectable stainless steel filter |
| Filtering capacity | 100 µm |
| Water connection | 1 ½ " - Camlock, ¾" male |
| Optional extras available | Anemometer and wind station, Industry 4.0 kit, Dosing pump for odour abatement, Radio remote control |
