Conrad C62
The Conrad C62 dust suppression cannon can control dust and odours in any kind of hostile environment without any difficulty.
The Conrad C62 dust suppressor lets you select the number of active nozzles, depending on the misting intensity you want to achieve.
60mRange
10.700m²Area covered
340°Automatic rotation
60l/minWater consumption
15kWInstalled power
60mrange
Set-ups
On a trolley, on a base or on an arm
Trolley or base
The wheeled set-up of the C62 consists of a sturdy galvanised base with 3 pneumatic wheels, 2 stabilisers and a drawbar suitable for slow towing with construction machinery.
This version can easily be converted to the base set-up if a fixed position is needed. The three wheels, drawbar and stabilisers can be removed and three feet can be fitted at the three ends to keep the cannon fixed and stable.
On an articulated arm
The articulated arm version is one of the most popular choices for the C62 dust suppression cannon, often combined with custom autonomous station solutions. The arm, raised by a pantograph, reaches a height of about 5.5 m, so the dust can be hit from above.
PLC

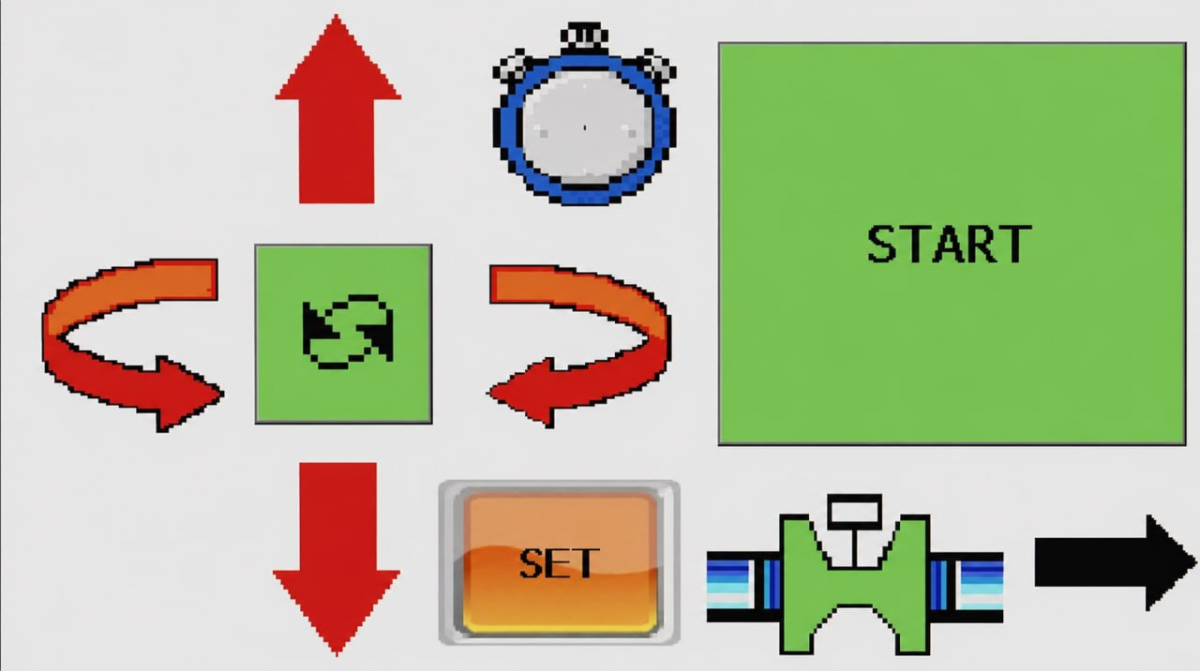

All C62 configurations come with a PLC with a touch screen interface. The operator can switch the pump and fan on and off, set the rotation angle, adjust the rotation speed, tilt the cannon head vertically, switch the light on and off, raise and lower the articulated arm, select the active nozzles, switch on the ring heating, enable or disable the radio remote control (optional), set working time slots and the work cycle function.
Optional extras
Optional extras available
Dosing pump
The C62 can be fitted with a dosing pump for odour control or water treatment applications.
Radio remote control
This model can be fitted with a radio remote control to operate the automatic functions from a distance, for example to direct the mist jet precisely straight from the excavator cab. The radio remote controls selected by the Cannoni Conrad team are high quality and suited to industrial environments.
Anemometer and wind station
The PLC installed on the C62 dust suppression cannon is ready for connection to an anemometer and a weather station for wind monitoring. This configuration makes it possible to control when misting is activated according to the wind speed measured in the work area, based on preset operating thresholds.
Technical specifications
Data sheet
60 mRange
10.700 m²Area covered
340°Automatic rotation
60 l/minWater consumption
Documents
Technical data sheetPDF · 134.7 KBDownload| Range | 60 m |
|---|---|
| No. of nozzles | 60 - selectable in groups of 20|20|20 |
| Nozzle rings | 1 aluminium nozzle ring - heated by an electric heating element for sub-zero operation. |
| PLC automation | integrated PLC electronics, Headlight switch-on, Water pump switch-on, Nozzle ring heating switch-on, Fan switch-on, Pause/Work function, Rotation setting from 0° to 340°, Articulated arm up/down, Daily and weekly timer, selectable active nozzles |
| Rotation | 340° automatic with servo motor |
| Tilt | -20° +45° electric, adjustable via PLC |
| Raise / Lower | only with the articulated arm configuration - reachable working height 5.5 m |
| Water Consumption | 60 l/min |
| Fan power | 11 kW - 400V - 50Hz |
| Ø FAN | 660 mm |
| Total installed power | 15 kW |
| IP | 65 |
| Pressure | 10-15 bar, 50-60 bar |
| Area covered | 10.700 m² |
| Noise | 70 dB |
| Water Filter | Inspectable stainless steel filter |
| Filtering capacity | 100 µm |
| Water connection | 1 ½ " - Camlock |
| Water pump included | Vertical multistage centrifugal electric pump for gravity operation. No inlet water pressure required |
| Lifting | Forklift fork pockets |
| Optional extras available | Anemometer and wind station, High-pressure pump, Industry 4.0 kit, Dosing pump for odour abatement, Radio remote control |
| Electrical connection | CEE 32A 3P+N+E |
