Conrad C50
The Conrad C50 is a dust suppression cannon with a range of 50 metres, designed to solve the problem of dust production on construction sites, quarries, steelworks and cement works.
Equipped with a dosing pump, it is a valuable ally for odour reduction in landfills, anaerobic digestion sites, compost storage sites and the waste sector in general.
50mRange
7.500m²Area covered
340°Automatic rotation
18-33l/minWater consumption
8kWInstalled power
50mrange
Set-ups
On a trolley, on a base or on an arm

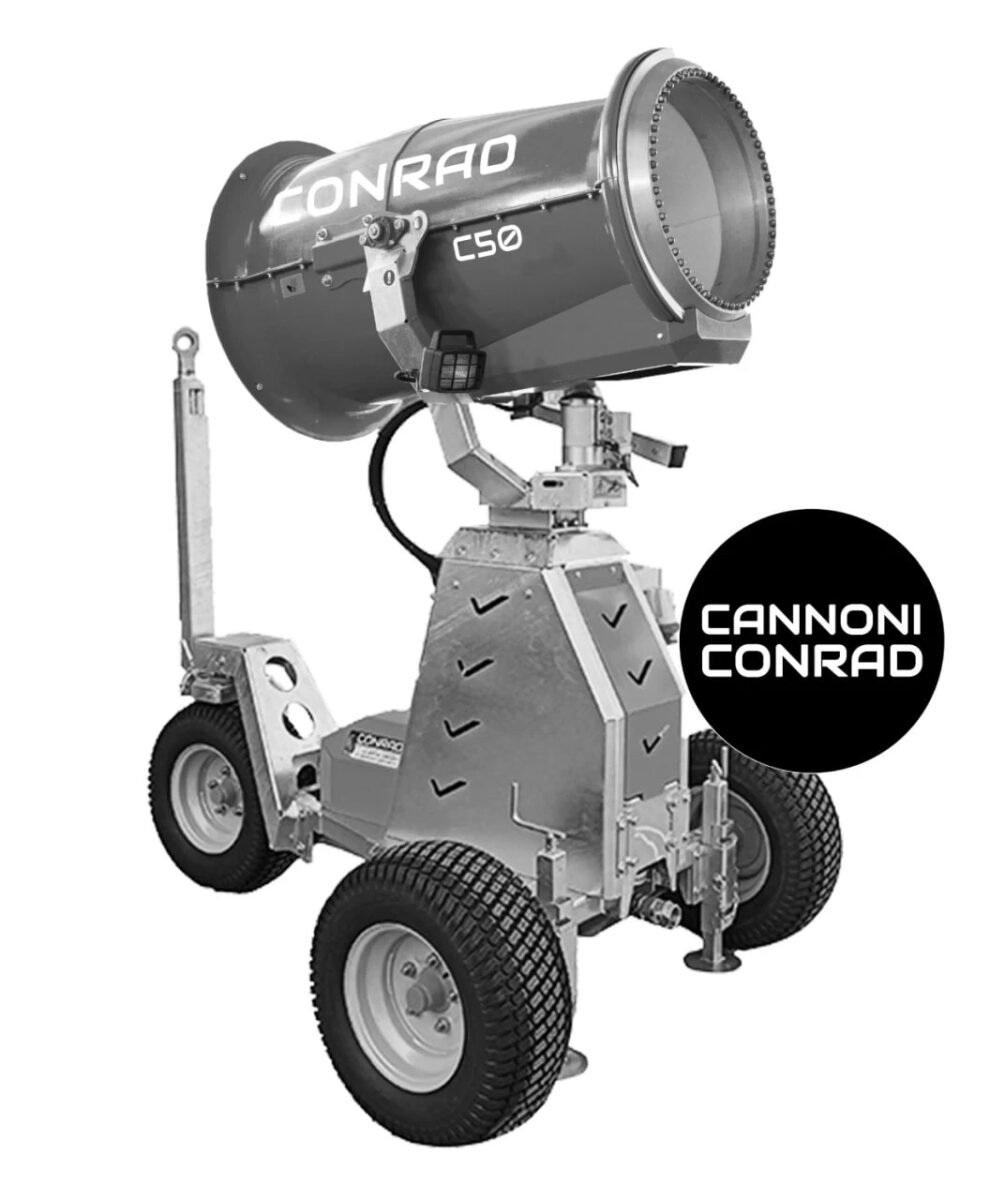

Trolley or base
The wheeled set-up of the C50 consists of a sturdy galvanised base with 3 pneumatic wheels, 2 stabilisers and a drawbar suitable for slow towing with construction machinery.
This version can easily be converted to the base set-up if a fixed position is needed. The three wheels, drawbar and stabilisers can be removed and three feet can be fitted at the three ends to keep the cannon fixed and stable.

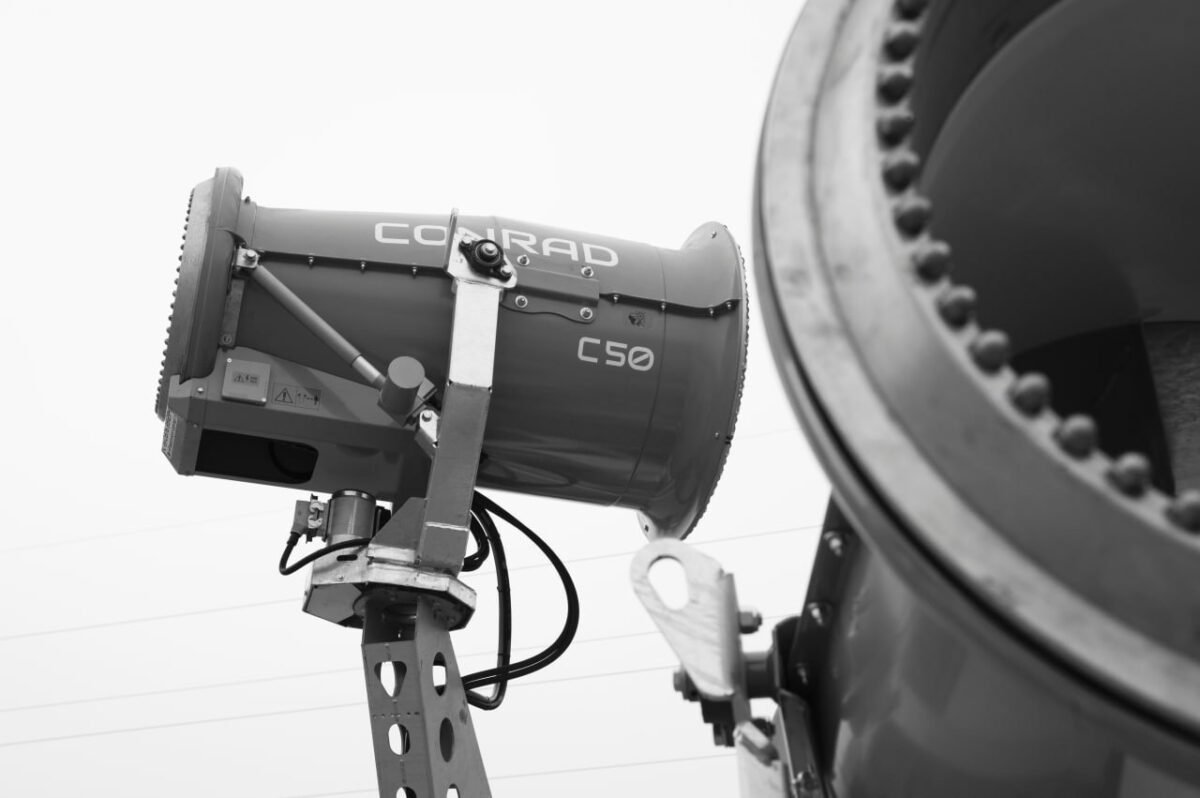

On an articulated arm
The articulated arm version is one of the most popular choices for the C50 dust suppression cannon, often combined with custom autonomous station solutions. The arm, raised by a pantograph, reaches a height of about 5.5 m, so the dust can be hit from above.

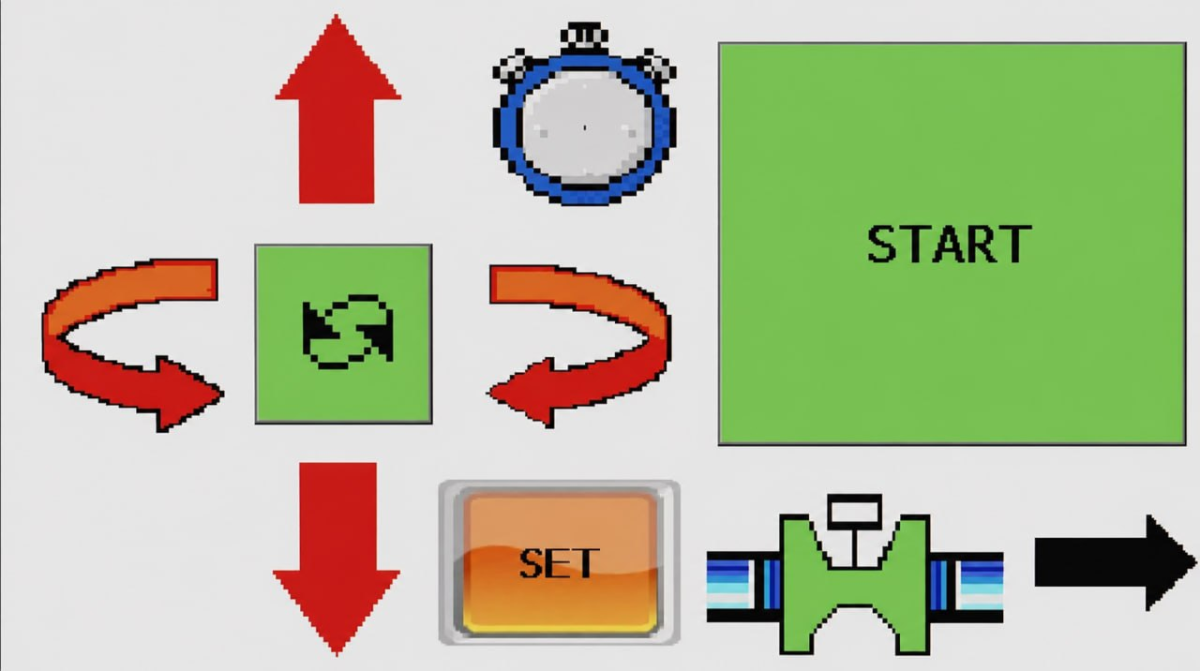

PLC
All C50 configurations come with a PLC with a touch screen interface. The operator can switch the pump and fan on and off, set the rotation angle, adjust the rotation speed, tilt the cannon head vertically, switch the light on and off, raise and lower the articulated arm, select the active nozzles, switch on the ring heating, enable or disable the radio remote control (optional), set working time slots and the work cycle function.
Optional extras
Optional extras available
Dosing pump
The C50 can be fitted with a dosing pump for odour control or water treatment applications.

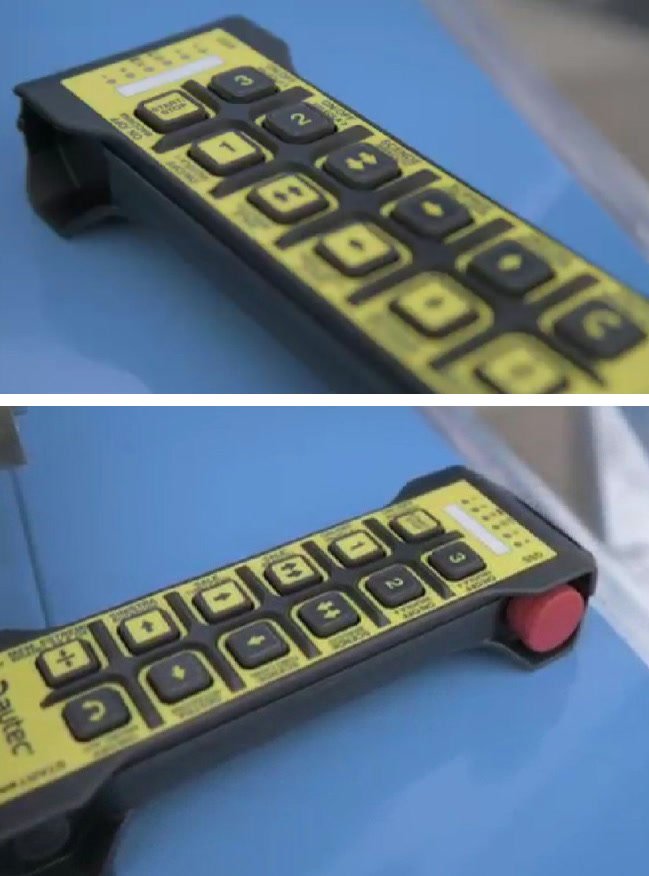

Radio remote control
This model can be fitted with a radio remote control to operate the automatic functions from a distance, for example to direct the mist jet precisely straight from the excavator cab. The radio remote controls selected by the Cannoni Conrad team are high quality and suited to industrial environments.

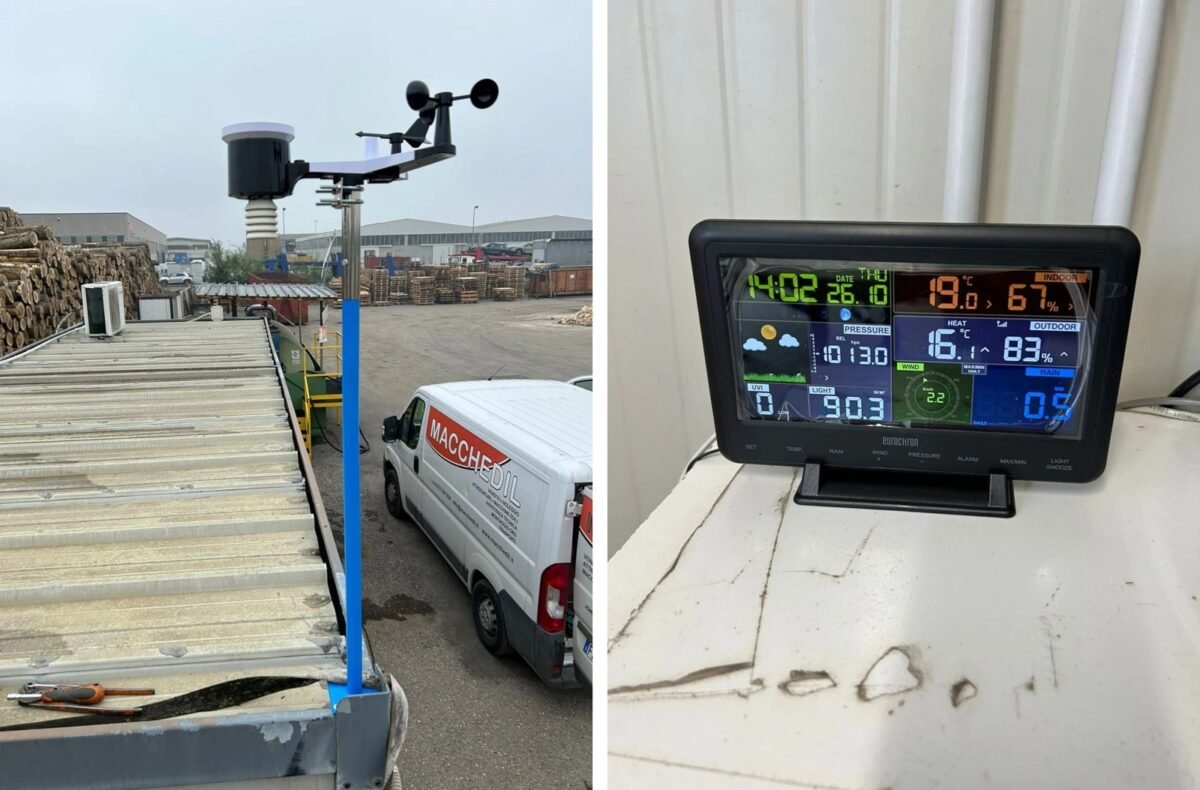

Anemometer and wind station
The PLC installed on the C50 dust suppression cannon is ready for connection to an anemometer and a weather station for wind monitoring. This configuration makes it possible to control when misting is activated according to the wind speed measured in the work area, based on preset operating thresholds.
Technical specifications
Data sheet
50 mRange
7,500 m²Area covered
340°Automatic rotation
18-33 l/minWater consumption
Documents
Technical data sheetPDF · 136.9 KBDownload| Range | 50 m |
|---|---|
| No. of nozzles | 60 - selectable in groups of 20|20|20 |
| Nozzle rings | 1 aluminium nozzle ring - heated by an electric heating element for sub-zero operation. |
| PLC automation | integrated PLC electronics, Headlight switch-on, Water pump switch-on, Nozzle ring heating switch-on, Fan switch-on, Pause/Work function, Rotation setting from 0° to 340°, Articulated arm up/down, Daily and weekly timer, selectable active nozzles |
| Rotation | 340° automatic with servo motor |
| Tilt | -20° +45° electric, adjustable via PLC |
| Raise / Lower | only with the articulated arm configuration - reachable working height 5.5 m |
| Pressure | 10-15 bar, 50-60 bar |
| Water Consumption | 18-21 l/min, 33 l/min |
| IP | 55 |
| Noise | 70 dB |
| Area covered | 7500 m² |
| Fan power | 5.5 kW-400V-50Hz |
| Ø FAN | 660 mm |
| Total installed power | 8 kW |
| Water Filter | Inspectable stainless steel filter |
| Filtering capacity | 100 µm |
| Water connection | 1 ½ " - Camlock |
| Water pump included | Low-pressure pump 10-15 bar with consumption of about 33 l/min - high-pressure pump 50-60 bar with consumption of about 18-21 l/min |
| Electrical connection | CEE 32A 3P+N+E |
| Optional extras available | Anemometer and wind station, Industry 4.0 kit, Pressure washer lance kit with 10 m of connected high-pressure hoses, Dosing pump for odour abatement, Radio remote control |
