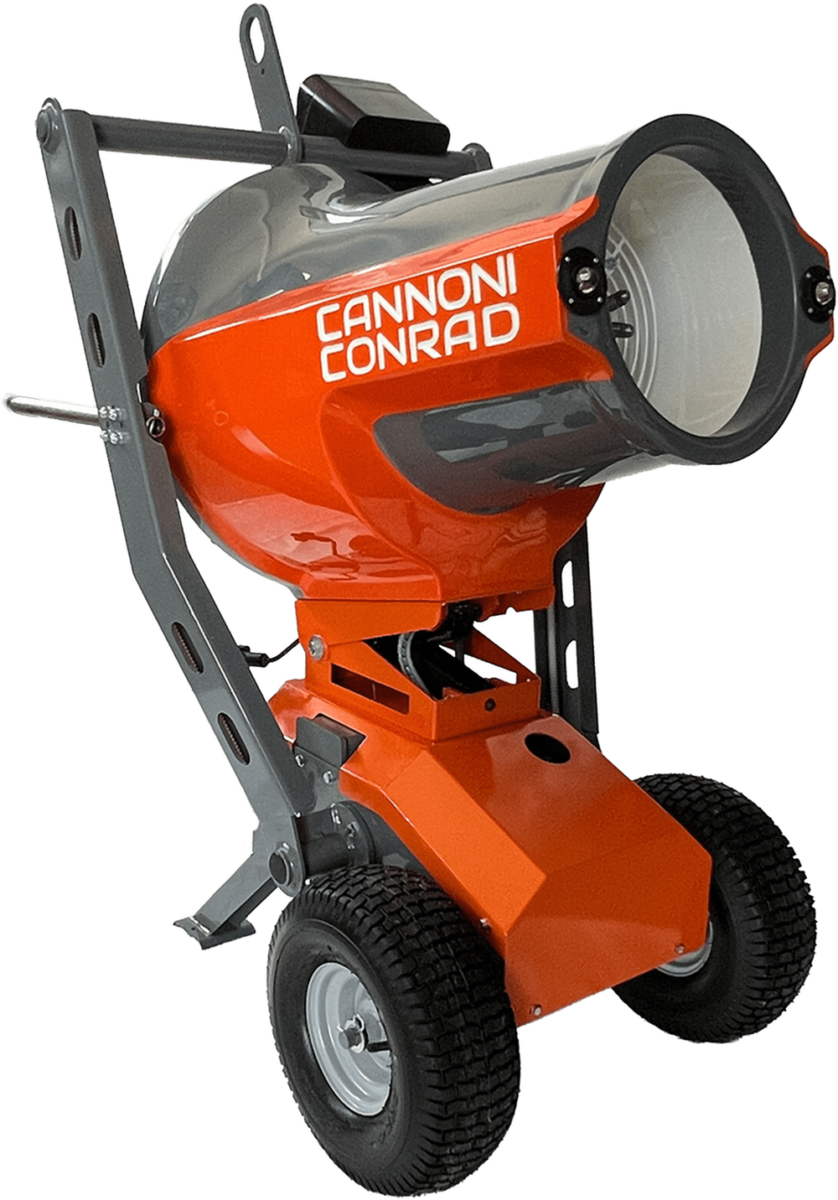

Conrad Phoenix Plus
Available for hire
The evolution of our Conrad Phoenix is the new CONRAD PHOENIX PLUS!
The range regulator allows the PHOENIX PLUS to progressively vary the distance of the jet from a minimum of 10 metres to over 25 metres.
The new electric motor and high-pressure pump ensure very low consumption for greater sustainability.
Tests carried out on the machine together with users have confirmed how the new implementations manage to facilitate the operator and work on the construction site effectively.
10-25mRange
8l/minConsumo acqua
220VSingle-phase
3kWPotenza installata
130kgPeso
10-25mgittata regolabile
NEW FOR 2026
ELECTRIC TILT
From June 2026, all Phoenix models will be fitted with an electric gun elevation mechanism.
It will therefore be possible to tilt the cannon vertically by up to 45° directly from the control box.
In azione
Performance 25 metres
Phoenix Plus in azione
Gittata del cannone
Pannello di controllo
Features
Fatto per il cantiere
ADJUSTABLE HOOKS FROM 10 TO 25 METRES
The new dust cannon has been equipped with a new motor with a potentiometer to adjust the power of the fan according to spraying needs, allowing an adjustable range of 10, 20, up to over 25 metres.
Thanks to this new set-up, the machine can also be easily connected to small 4.5 kW generators.

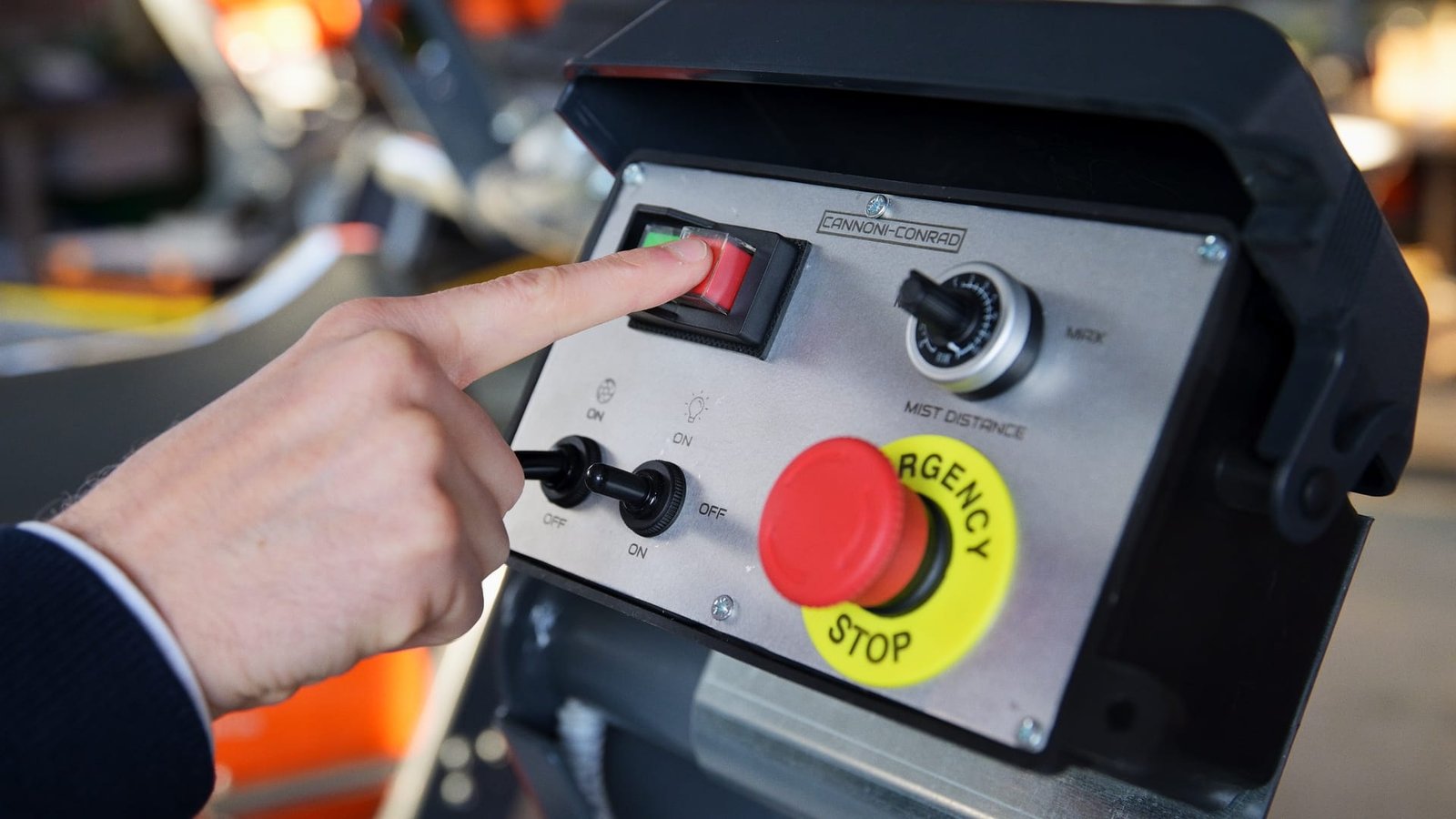

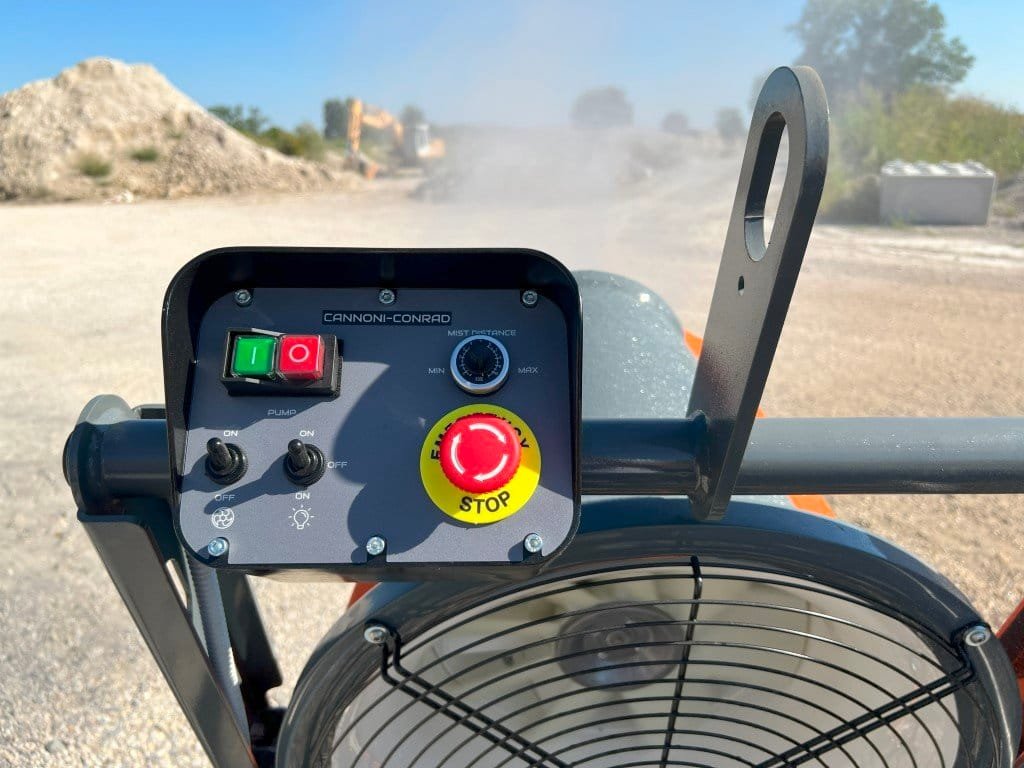

CONTROL BOX
CONRAD PHOENIX comes standard with a simple but effective control box with the following controls:
- ON/OFF Pump
- ON/OFF Fan
- Throw regulator
- Led headlights
- Emergency Button

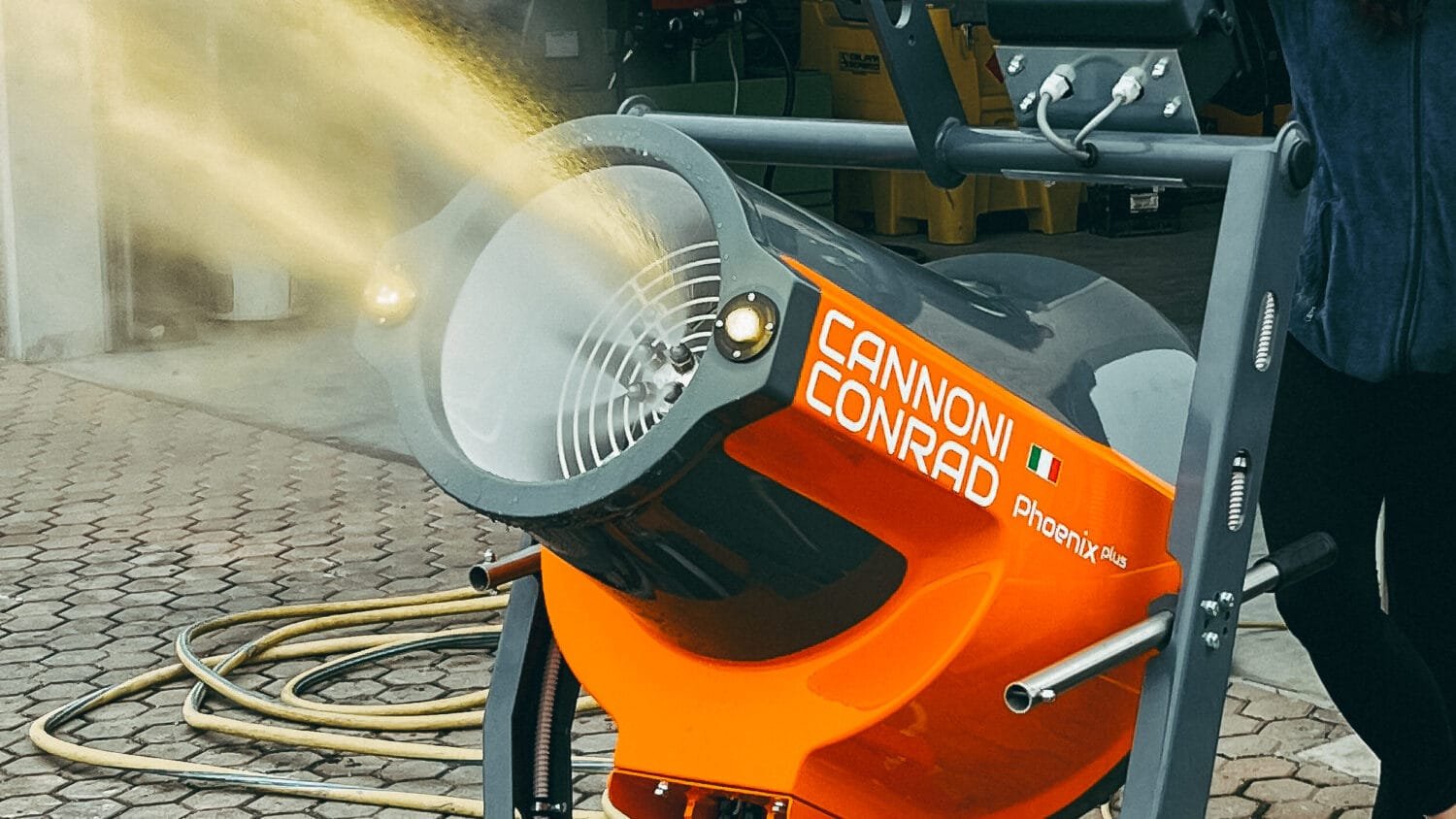

LED lights
We fitted two LED spotlights in two colours to illuminate the operating area for twilight, crepuscular situations, and for indoor areas such as storage sheds and internal demolition.
The New Design
Funzionale, resistente e anche bello
NEW DESIGN
New fibreglass tube accompanied by a new colour scheme that will extend throughout our range.
Innovative lines for construction machinery that is functional, durable and also ... beautiful.

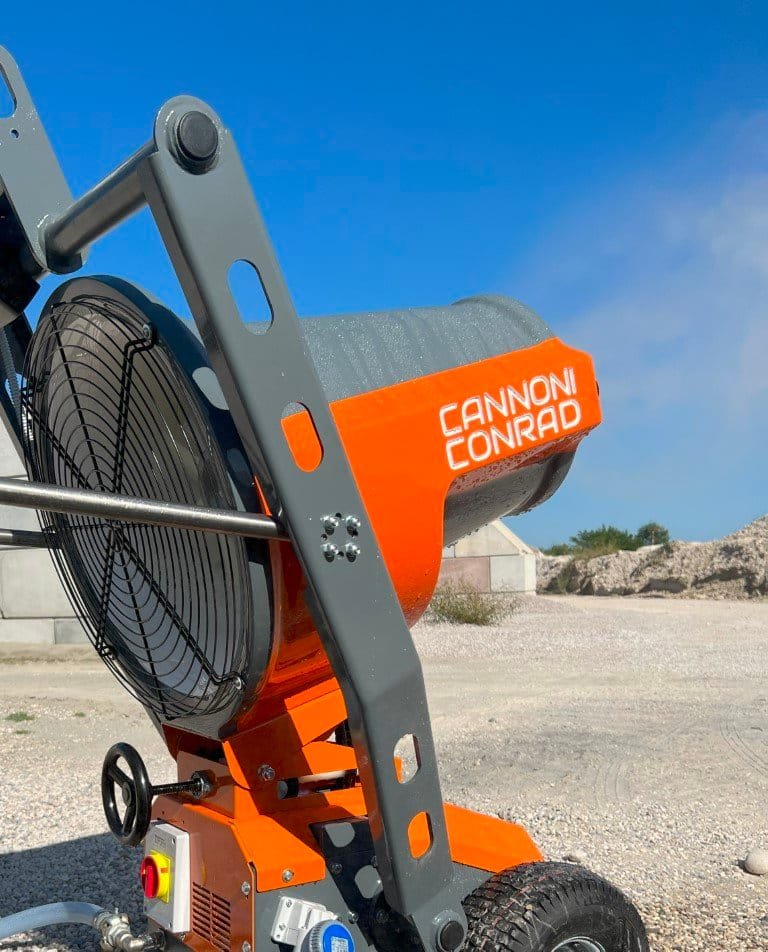

NEW TILT SYSTEM
We have improved the inclination system of the cannon tube to make it easier to direct the spray jet in height. It will no longer be necessary to unscrew two side knobs, but only a simple crank to precisely direct the cannon
IMPROVED PORTABILITY
Le maniglie retrattili sono state studiate per rendere il PHOENIX PLUS più leggero e maneggevole rispetto a prima. Inoltre, le maniglie possono essere inserite nell’alloggiamento e fungere da protezione durante il trasporto.
The larger wheels improve stability and manoeuvrability on uneven terrain.

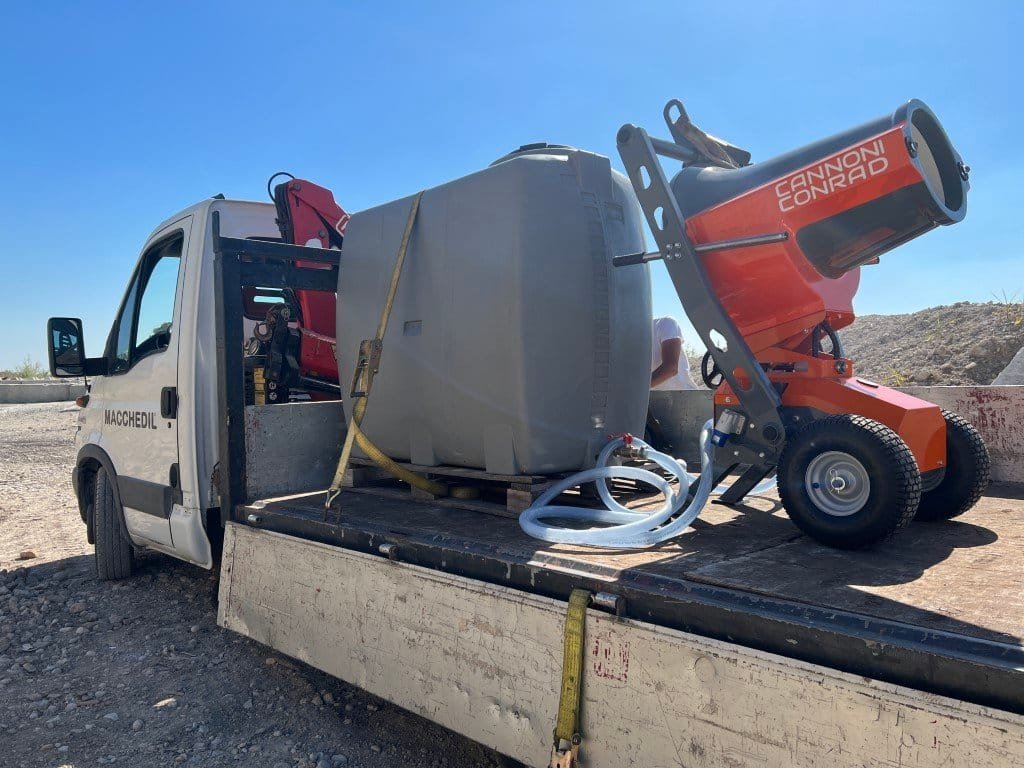

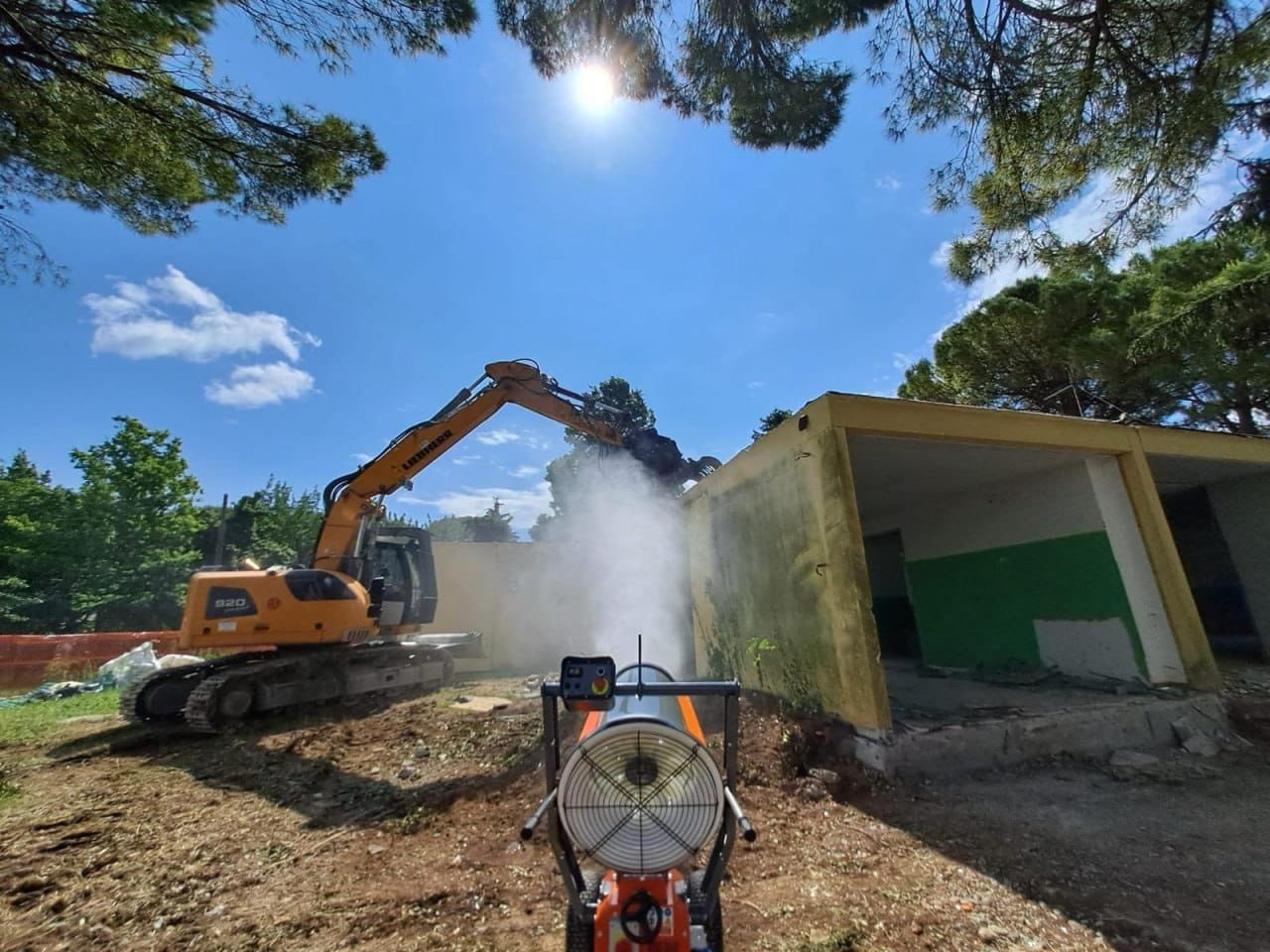

Sul campo
In funzione

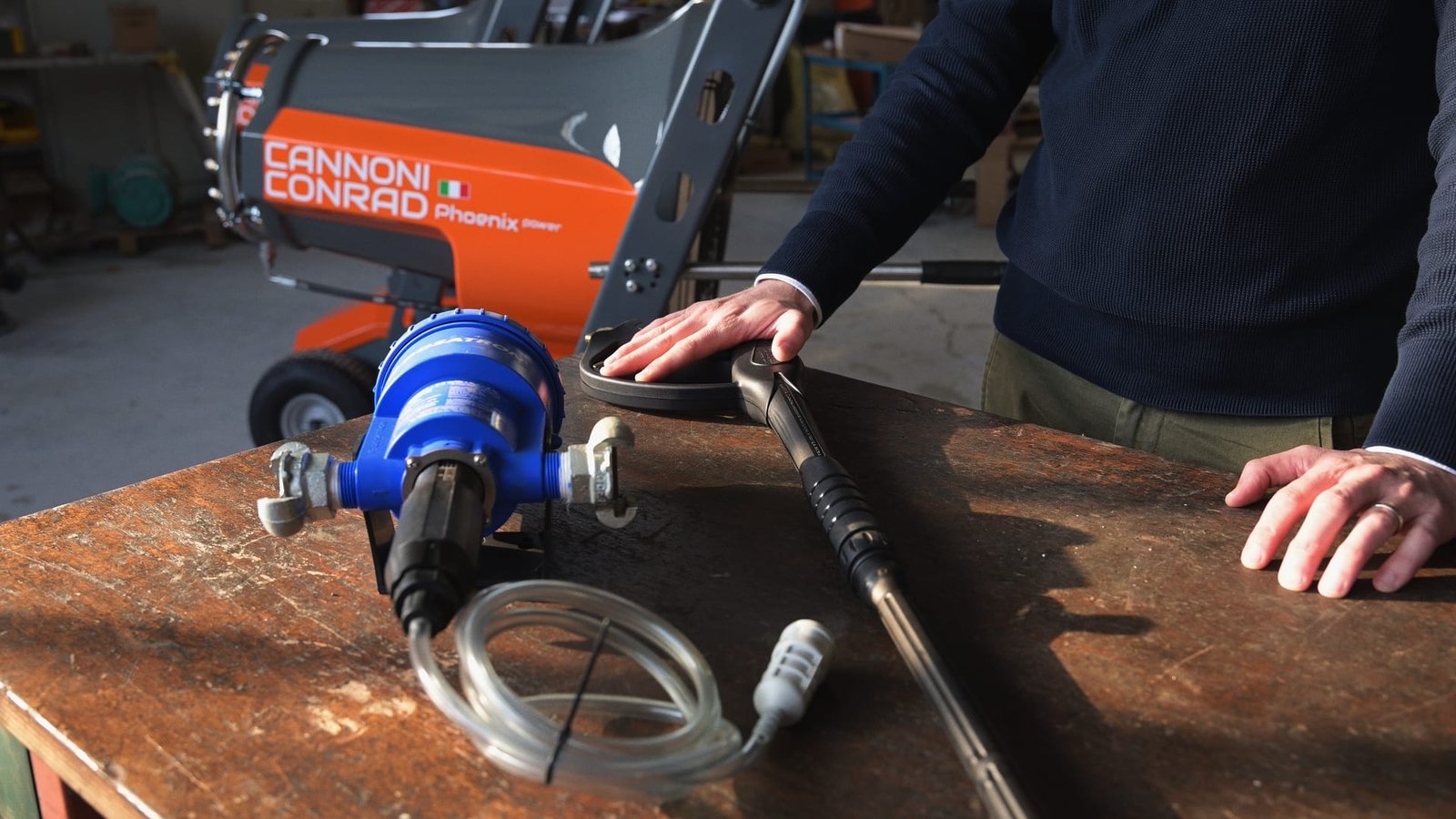

Optional
Odori e pulizia mezzi
DOSING PUMP FOR ODOUR CONTROL
- landfills
- composting sites
- waste recovery
- anaerobic digestion sites
- disposal of sewage sludge
- landfill management
HIGH-PRESSURE WASHER LANCE WITH 10 METRE HIGH-PRESSURE HOSE ATTACHED
- cleaning vehicles in landfills and quarries
- cleaning vehicles and machines in quarries
- cleaning and sanitisation in urban areas
- cleaning tyres before driving on public roads
- disinfection
Video guida

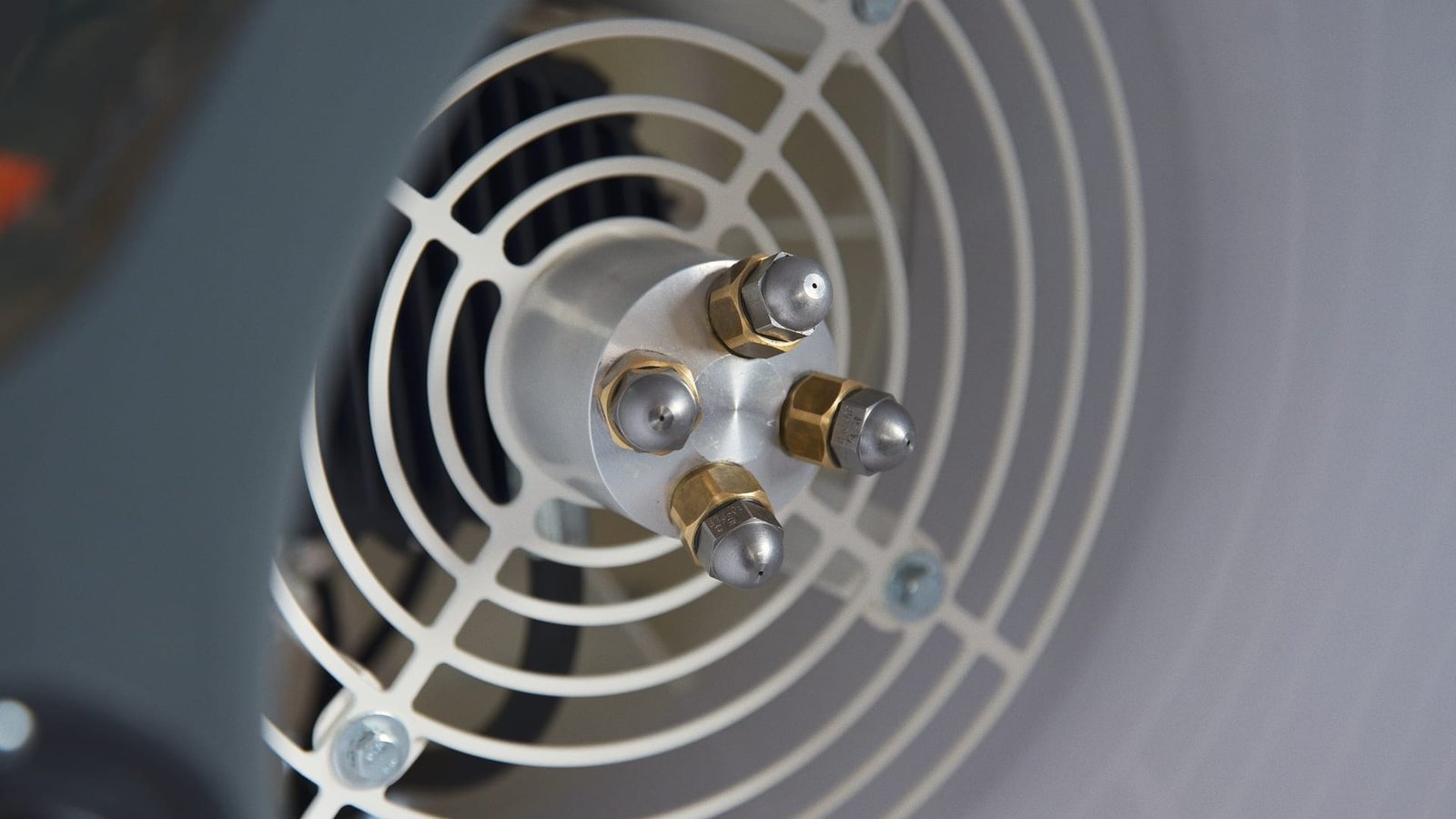

Nozzle and Filter Cleaning
There are two components that need to be cleaned and maintained properly: the nozzles and the water filter. Use these two instructional videos to keep your Conrad Cannon in top condition.

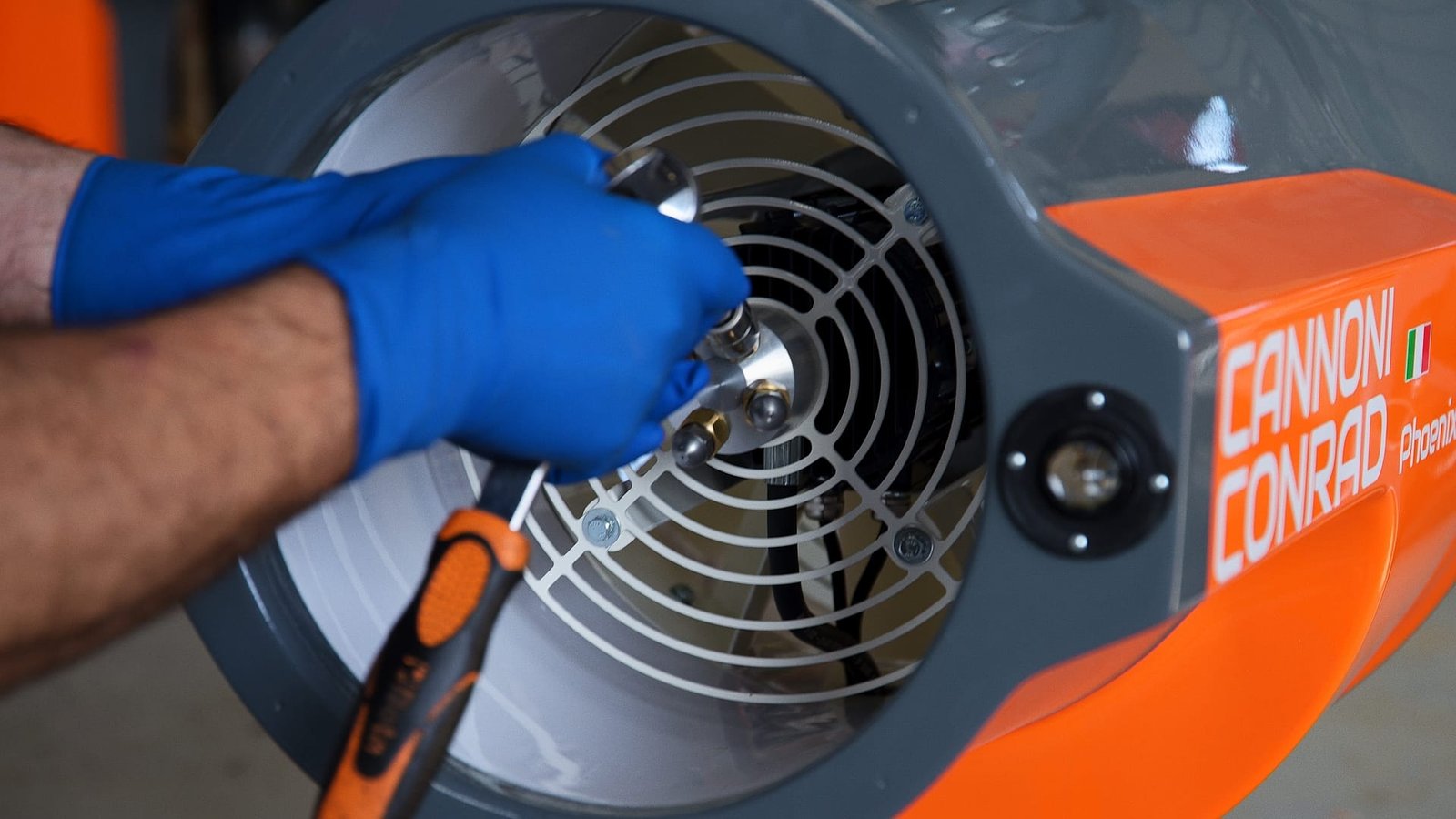

Manutenzione ugelli
Pulizia filtro
Technical specifications
Technical specifications
10-25 mRange
8 l/minConsumo acqua
3 kWPotenza installata
130 kgPeso
Documents
Technical data sheetPDF · 614.8 KBScarica| Range | adjustable from 10 to over 25 m |
|---|---|
| N. Nozzles | 4 |
| Inclination | + 45° electric |
| Pressure | 50-60 bar |
| Noise | 70 dB |
| IP | 55 |
| Ø FAN | 410 mm |
| Water Consumption | 8 l/min |
| Water pump included | 3-piston pump with crank-rod system. Integral ceramic pistons. No inlet water pressure required |
| Water connection | ¾"male |
| Electrical connection | Electrical cable with a minimum cross-section of 3×2.5 mm and 3-pin blue single-phase plug 16A., CEE 16A |
| Size and Weight | 100 x 70 x h145 cm – 130 kg |
| Fan power | 1 kW |
| Total installed power | 3 kW - 220 V- 50Hz |
| Commands | Control box: Fan ON/OFF, Pump ON/OFF, spray range adjuster, LED lights ON/OFF, Up and down tilt, emergency stop button |
