From June 2026, all Phoenix models will be fitted with an electric gun elevation mechanism.
It will therefore be possible to tilt the cannon vertically by up to 45° directly from the control box.
Il confronto
Power vs Plus
Features
Fatto per il cantiere
ADJUSTABLE HOOK up to 35 m

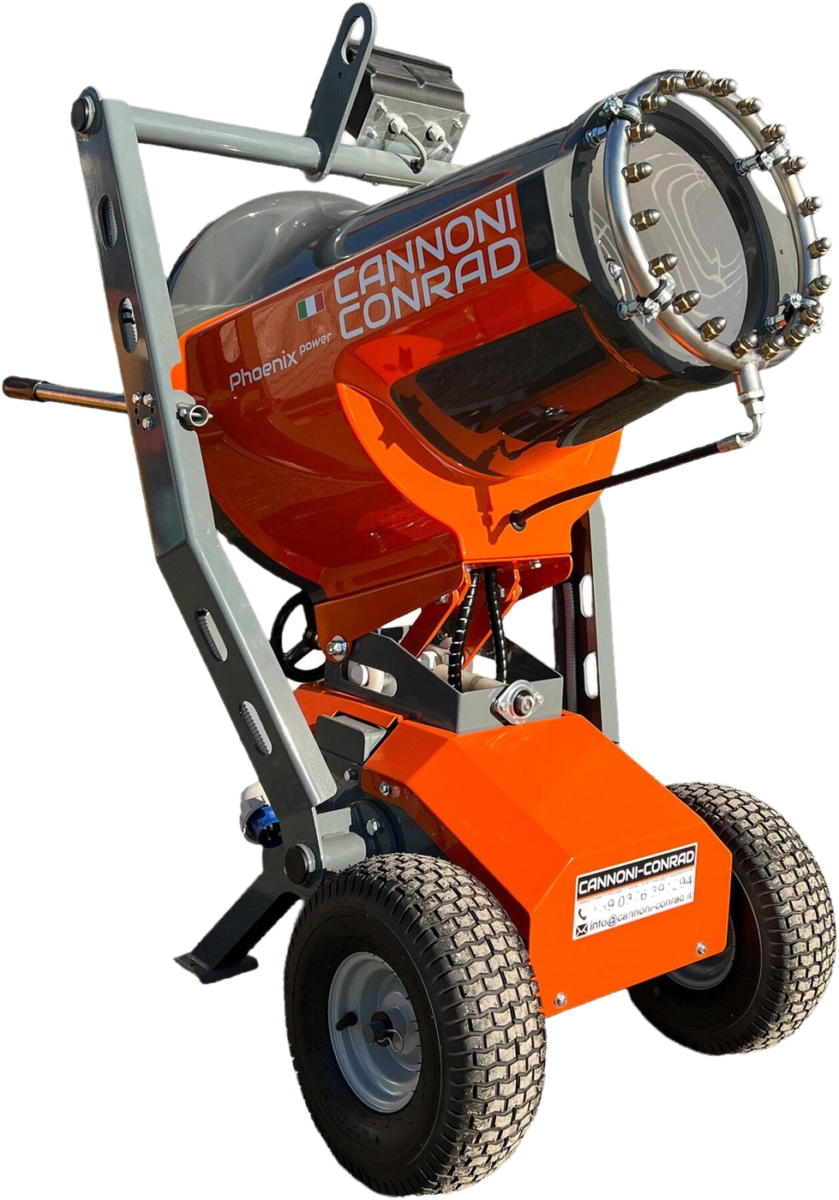

The new dust cannon has been equipped with a new, more powerful motor with a potentiometer so that the fan power can be adjusted according to spraying needs, allowing an adjustable range of 10, 20, up to 35 metres.
Grazie a questo nuovo allestimento la macchina può essere collegata facilmente anche a piccoli generatori da 6-7 kW.
JET IN RAISED POSITION
The raised position of the cannon jet compared to the previous model, from 70 cm to 100 cm, is a great advantage on the usability of the range.
control box
CONRAD PHOENIX comes standard with a simple but effective control box with the following controls:
ON/OFF Pump
ON/OFF Fan
Throw regulator
Led headlights
Up and down tilt (new for 2026)
Emergency Button
IMPROVED PORTABILITY
The retractable handles are designed to make this line of guns lighter and easier to handle than before. In addition, the handles can be inserted into the housing and act as protection during transport.
The larger wheels improve stability and manoeuvrability on uneven terrain.
The New Design
DESIGN Conrad
It is confirmed that for the Power model, the fibreglass tube is durable and can significantly reduce fan noise.
Innovative lines for construction machinery that is functional, durable and also ... beautiful.
Video guida
Nozzle and Filter Cleaning
There are two components that need to be cleaned and maintained properly: the nozzles and the water filter. Use these two instructional videos to keep your Conrad Cannon in top condition.
Manutenzione ugelli
Pulizia filtro
Optional
Odori e pulizia mezzi
DOSING PUMP FOR ODOUR CONTROL
landfills
composting sites
waste recovery
anaerobic digestion sites
disposal of sewage sludge
landfill management
HIGH-PRESSURE WASHER LANCE WITH 10 METRE HIGH-PRESSURE HOSE ATTACHED
3-piston pump with crank-rod system. Integral ceramic pistons. No inlet water pressure required
Water connection
¾"male
Electrical connection
Electrical cable with a minimum cross-section of 3×2.5 mm and 3-pin blue single-phase plug 16A., CEE 16A
Size and Weight
100 x 70 x 145 cm (h) - 135 kg
Fan power
2.2 kW
Total installed power
3.6 kW - 220 V- 50Hz
Commands
Control box: Fan ON/OFF, Pump ON/OFF, Spray range adjuster, LED spotlight ON/OFF, Up and down tilt, Emergency stop button
Altri modelli
Dalla stessa gamma
Conrad Phoenix Plus
The evolution of our Conrad Phoenix is the new CONRAD PHOENIX PLUS!The range regulator allows the PHOENIX PLUS to progressively vary the spray distance from a minimum of 10 metres to over 25 metres.The new electric motor and high-pressure pump ensure very low consumption for greater sustainability.Tests carried out on the machine together with users have confirmed how the new implementations manage to facilitate the operator and work on the construction site effectively.
Il cannone nebulizzatore CONRAD Titan Plus ha una gittata fino a 25 metri, ideale per il controllo di polveri e odori in vari ambienti industriali e cantieri.
Dispone di rotazione automatica fino a 230° e inclinazione elettrica verticale fino a +45°, facilitando l’orientamento del getto.
Dotato di fari LED IP67 per operazioni notturne e trasportabile su 4 ruote con maniglie retrattili, garantisce massima praticità d’uso e mobilità. La pompa a 3 pistoni in ceramica integrale assicura un’efficace nebulizzazione senza necessità di pressione idrica in entrata.
Il cannone nebulizzatore CONRAD Titan Power ha una gittata fino a 35 metri, ideale per il controllo di polveri e odori in vari ambienti industriali e cantieri.
Dispone di rotazione automatica fino a 230° e inclinazione elettrica verticale fino a +45°, facilitando l’orientamento del getto.
Dotato di fari LED IP67 per operazioni notturne e trasportabile su 4 ruote con maniglie retrattili, garantisce massima praticità d’uso e mobilità. La pompa a 3 pistoni in ceramica integrale assicura un’efficace nebulizzazione senza necessità di pressione idrica in entrata.
Introducing the new stand-alone dust suppression unit, providing everything you need on your building site in one go: a dust suppression cannon with water and electricity, all mounted on a single skid that can be forklifted or hoisted using hooks.It has been upgraded with a telescopic tower that extends up to 5 metres, allowing it to target dust more closely and reach the source of dust generation more easily.The spray range is over 40 metres, and the fan motor is fitted with a potentiometer to adjust the length of the spray jet – a very useful feature for avoiding interference on site and overspray.Water consumption is very low, allowing for continuous operation for 2.5 hours, thanks to the high-pressure pump which enables sustainable use of the water supply.The cannon also features an IP67-rated LED spotlight to illuminate the spray in low-light conditions or during night-time demolition work.
