#30 Stand-alone Station

#30 Stand-alone Station

Name: Stazione Autonoma #30
Brand: Conrad

Request a quote Download the catalogue

7.500m²Covered area

50mRange

3000lTank

33l/minConsumo acqua

Set up

Tutto su un unico skid

This Autonomous Station on a CONRAD LC50R roll-off saddle is a compact version, tailor-made for this small two-axle truck.

Dust Suppression Cannon: LC50R
Generator set: Integrated
Handling: Scarrabile
Automation: Integrated PLC

Cannon Features Download the catalogue

Componenti

7.500m²area coperta

Details

Fatto per il cantiere

PLC

The Conrad LC50R dust suppression gun is equipped with PLC touch screen electronics that are easy for any operator to use.

The use of the PLC is essential to precisely set the rotation from 0° to 340° of the cannon in order to make the most of the spray range and act more precisely on the areas to be treated.

And with CANNONI-CONRAD's INDUSTRIA 4.0 KIT, the dust suppression gun will receive 20% in the form of a tax credit.

Sectors of use

We carry out these projects on roll-off trucks very frequently, the sectors in greatest demand are certainly demolition, waste management and soil remediation.

In these areas, being autonomous with water and electricity is essential to reduce wastage of time and resources.

The Scarce Saddle

The saddle is tailor-made for the truck on which it is to be loaded. In this case, the design was based on a 4-metre long saddle because the truck to be fitted was a two-axle truck with a crane.

The saddle was equipped with the LC50R dust suppression cannon, the diesel power generator and a steel tank with a capacity of 3,000 litres, which was tailor-made to meet the saddle's compact dimensions.

Industry 4.0 kit

This autonomous dust-laying station was equipped withindustry 4.0 kitfor remote productivity control.

In azione

Station in Action

Cannoni Conrad, Cavit roll-off LC50R (5) no name

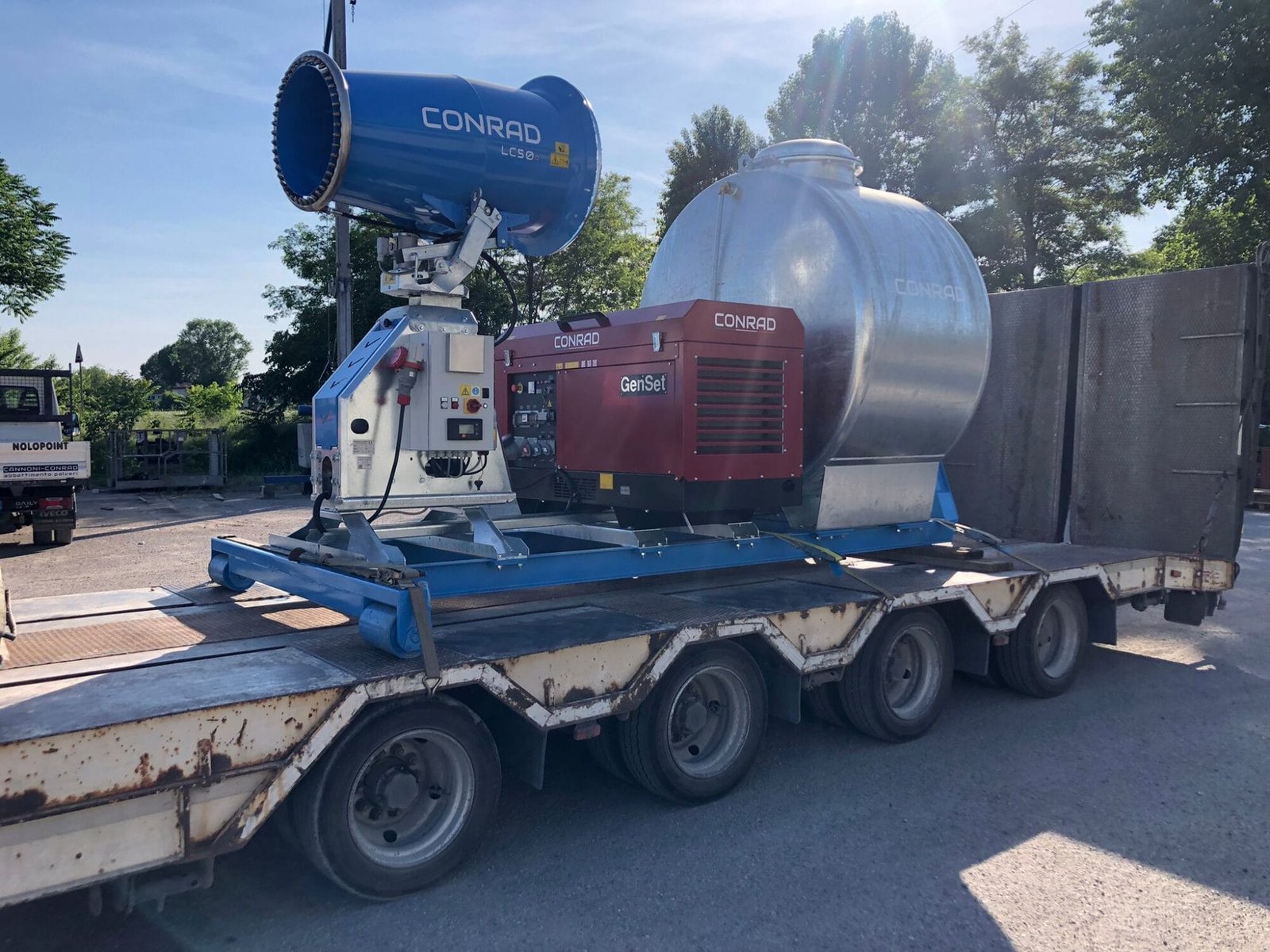

Conrad Cannoni, Cavit LC50R roll-off trailer (4)

Technical specifications

Scheda riassuntiva

7,500 m²Covered area

50 mRange

33 l/minConsumo acqua

Documents

Technical data sheetPDF · 130.4 KBScarica

Dust Suppression Cannon	LC50R
Tank capacity	3000L Bespoke
Generator Set	Integrated
Handling	Scarrabile
Automation	Integrated PLC
Range	50 m
N. Nozzles	45
Rotation	340° automatic with integrated PLC
PLC automation	Water pump switch-on, Fan switch-on, Sleep/Work function, Rotation setting from 0° to 340°, Daily and weekly timer
Inclination	-20° +45°manual
Pressure	10-15 bar
Water Consumption	33 l/min
Fan power	5 kW - 400V - 50Hz
Total installed power	7.9 kW
Noise	70 dB
IP	55
Covered Area	7500 m²
Ø FAN	500 mm
Water Filter	Inspectable stainless steel filter
Filtering capacity	100 µm
Water pump included	Self-priming vertical multistage centrifugal electric pump for gravity operation. No inlet water pressure required
Water connection	1 ½ " - Camlock
Electrical connection	CEE 32A 3P+N+E
Lifting	Housing for forklift forks
Available options	Automatic vertical inclination by PLC, Industry 4.0 kit, Dosing pump for odour abatement, Remote control
