Automatic Dust Suppression Cannons

High-powered automatic cannons with a range of up to 90 metres, designed to abate dust over large areas. The autonomous control system optimises consumption and coverage, ensuring maximum efficiency in construction sites and industries that need powerful and reliable solutions.

Request a quote

Our Models

PLC-controlled

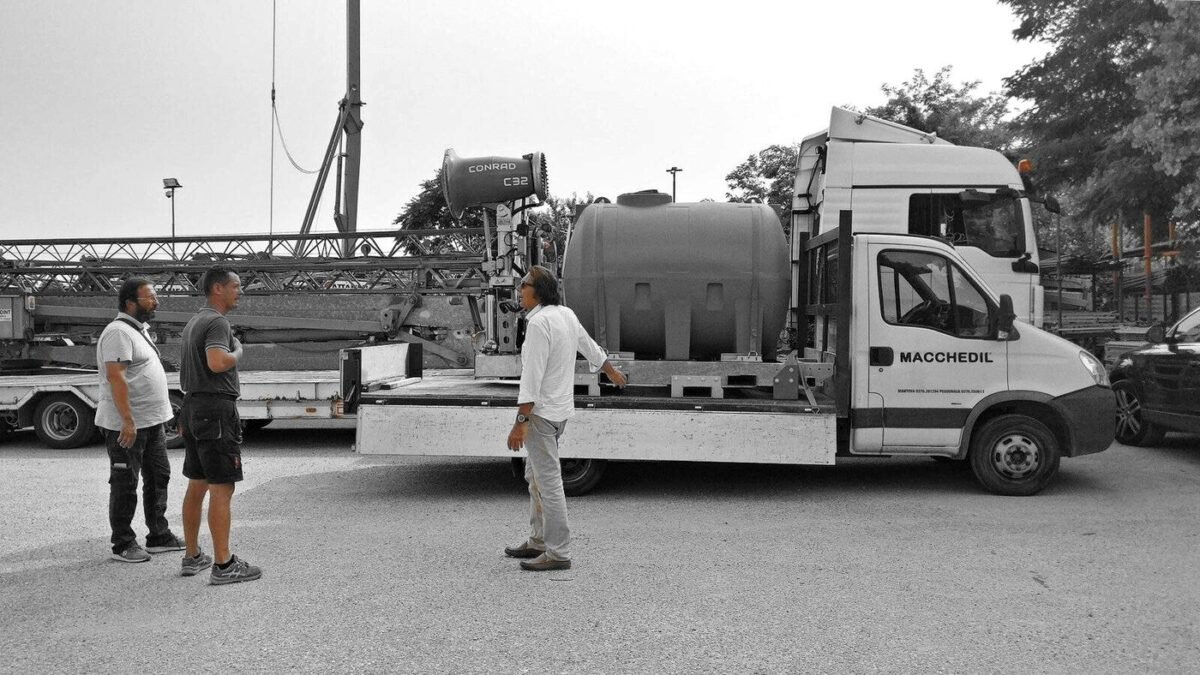

Conrad C32

30+mgittata

Range: over 30 m
No. Nozzles: 64 - selectable 32|32
Rotation: 340° automatic with servo motor
Pressure: 10-15 bar

Discover the model

PLC-controlled

Conrad C42

40mgittata

Range: 40 m
No. Nozzles: 64 - selectable 32|32
Rotation: 340° automatic with servo motor
Pressure: 50 - 60 bar - integrated high-pressure pump

Discover the model

PLC-controlled

Conrad C50

50mgittata

Range: 50 m
No. Nozzles: 60 - selectable in groups of 20|20
Rotation: 340° automatic with servo motor
Pressure: 10-15 bar, 50-60 bar

Discover the model

PLC-controlled

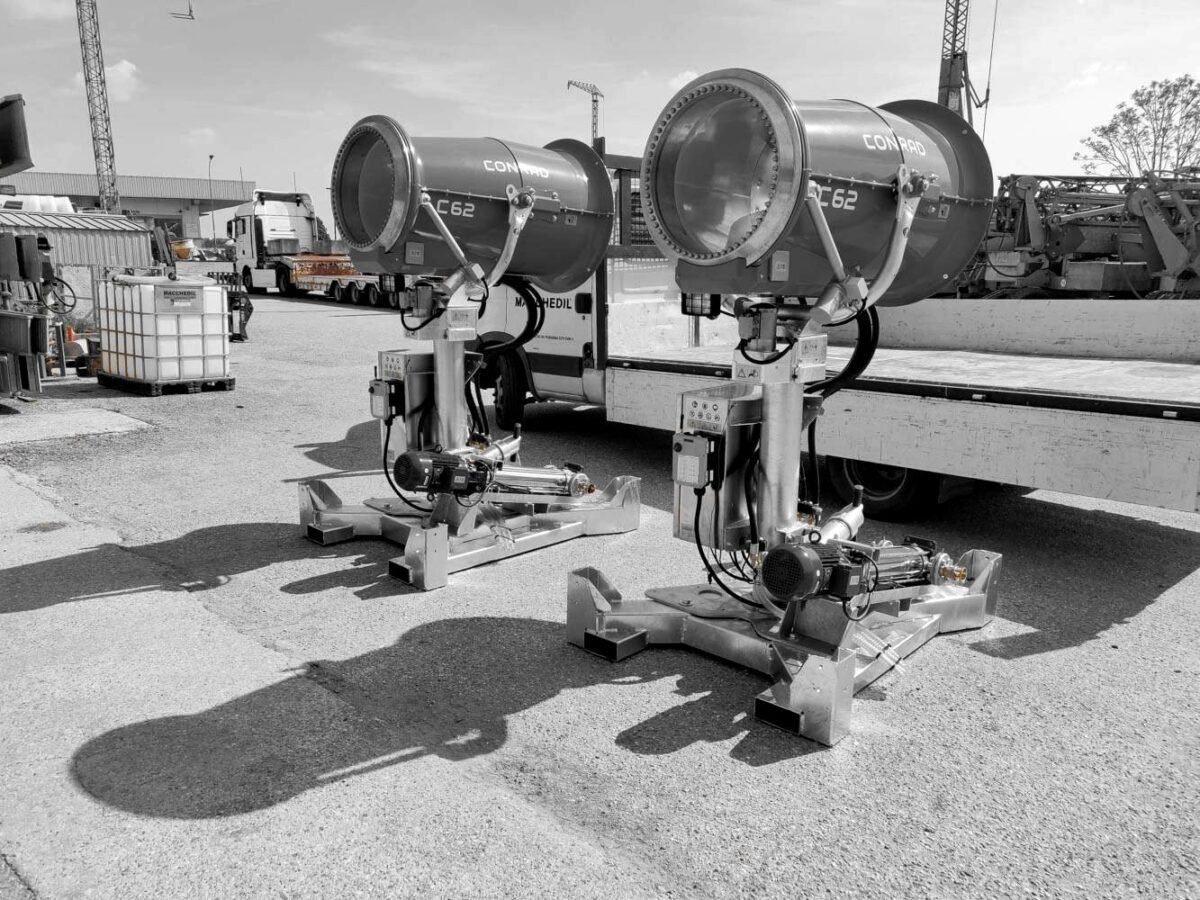

Conrad C62

60mgittata

Range: 60 m
No. Nozzles: 60 - selectable in groups of 20|20
Rotation: 340° automatic with servo motor
Pressure: 10-15 bar, 50-60 bar

Discover the model

PLC-controlled

Conrad C72

70mgittata

Range: 70 m
No. Nozzles: 60 - selectable in groups of 20|20
Rotation: 340° automatic with servo motor
Pressure: 10-15 bar, 50-60 bar

Discover the model

CONFIGURATIONS

I nostri sistemi automatici di abbattimento delle polveri sono di solito impostati con 3 diversi tipi di apparecchiature. Tutti questi tipi sono dotati di tasche per inserire le forche dei carrelli elevatori.

Conrad Fixed-base wireframe cannons

Fixed Base

Conrad Wireframe c50 cannons on trolley 2

Trolley

Conrad Cannons wireframe c 50 on articulated boom

Articulated Arm

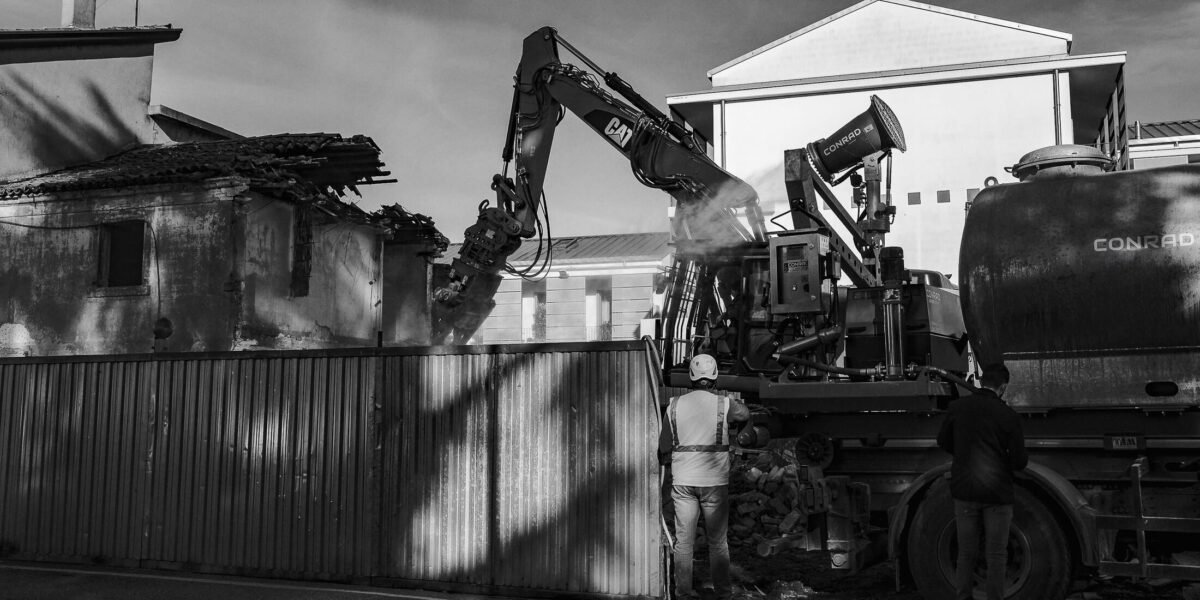

Nelb Rodrigues Cannoni Conrad Demolition Autonomous Automatic Systems 2

AUTOMATIONS

Our stand-alone dust suppression unit for all types of construction sites.

Rotation control from 0° to 340°
Tilt control from -20° to +45°.
Articulated arm up/down movement
Automatic water drainage (function can be disabled)
Setting the working angle using the self-learning method
Weekly work scheduling (3 daily start/stop cycles)
Type of atomisation: fine high-pressure atomisation (for wood dust or similar) or thicker atomisation (perfect for demolition)
Intuitive touchscreen panel

REMOTE CONTROL

Radio control for remote control of the station.

Un radiocomando a 12 impostazioni permette all'operatore di gestire la macchina fino ad una distanza di 100 m.

This gives the operator full control of the sprayer, even when they are on a moving machine (excavator, skid loader, lorry, etc.).

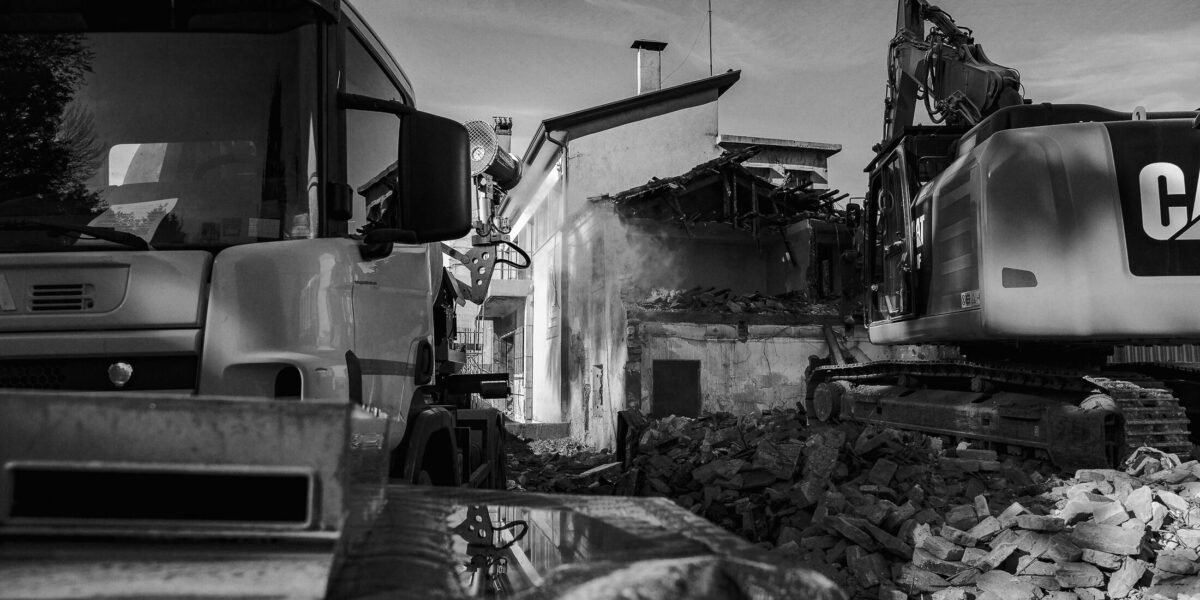

Nelb Rodrigues Cannoni Conrad Demolition Autonomous Automatic Systems0
