#21 Stand-alone Station
10.700m²Covered area
60mRange
10.000lTank
60l/minConsumo acqua
Set up
Tutto su un unico skid
This Autonomous Station on a roll-off saddle is the largest in its class, steel tank 8000 litres, diesel generator and C62 spray gun with articulated boom set-up.
A customised set-up specifically requested by the company to handle dust from quarrying.
- Dust Suppression Cannon: C62
- Generator set: Integrated
- Handling: Scarrabile
- Automation: Integrated PLC
Componenti
10.700m²area coperta
Details
Fatto per il cantiere
AREAS OF USE
We carry out these projects on roll-off trucks very frequently, the sectors in greatest demand are certainly demolition, waste management and soil remediation.
In these areas, being autonomous with water and electricity is essential to reduce wastage of time and resources.
The unloadable saddle
The trailer is made to measure for the lorry onto which it is to be loaded.
The saddle will be equipped with the dust suppression cannon, the power generator and the fully transportable steel tank.
PLC
- Rotation control from 0° to 340°
- Tilt control from -20° to + 45°.
- Up/down movement in the articulated arm model
- Setting the working angle Start
- Fan Start water supply (motor pump/ solenoid valves)
- Weekly work scheduling (3 daily start/stop cycles)
- Active nozzle selection
- Switching the crown heater on or off
- Turning the light on or off
- Turning the radio control on or off
In azione
Autonomous Station in Action
Technical specifications
Scheda riassuntiva
10.700 m²Covered area
60 mRange
60 l/minConsumo acqua
Documents
Technical data sheetPDF · 199.1 KBScarica| Dust Suppression Cannon | C62 |
|---|---|
| Tank capacity | 10.000L |
| Generator Set | Integrated |
| Handling | Scarrabile |
| Automation | Integrated PLC |
| Range | 60 m |
| N. Nozzles | 60 - selectable in groups of 20|20 |
| Crowns | 1 aluminium crown - heated with electrical resistance for sub-zero operation. |
| PLC automation | integrated PLC electronics, Headlight switch-on, Water pump switch-on, Crown heater switch-on, Fan switch-on, Pause/Work function, Rotation setting from 0° to 340°, Articulated boom up/down, Daily and weekly timer, selectable active nozzles |
| Rotation | 340° automatic with servo motor |
| Inclination | -20° +45° automatic |
| Ascent / Descent | only with articulated boom set-up - reachable working height 5.5 m |
| Water Consumption | 60 l/min |
| Fan power | 11 kW - 400V - 50Hz |
| Ø FAN | 660 mm |
| Total installed power | 15 kW |
| IP | 65 |
| Pressure | 10-15 bar, 50-60 bar |
| Covered Area | 10.700 m² |
| Noise | 70 dB |
| Water Filter | Inspectable stainless steel filter |
| Filtering capacity | 100 µm |
| Water connection | 1 ½ " - Camlock |
| Water pump included | Self-priming vertical multistage centrifugal electric pump for gravity operation. No inlet water pressure required |
| Lifting | Housing for forklift forks |
| Available options | Industry 4.0 kit, Dosing pump for odour abatement, Remote control |
| Electrical connection | CEE 32A 3P+N+E |
Altre stazioni autonome
#07 Stand-alone Station
- Dust Suppression Cannon: C62
- Tank capacity: 3000L or 5000L
- Generator set: Integrated
- Handling: Trainable
- Automation: Integrated PLC
#30 Stand-alone Station
- Dust Suppression Cannon: LC50R
- Tank capacity: 3000L Bespoke
- Generator set: Integrated
- Handling: Scarrabile
- Automation: Integrated PLC
From the building site
Articles about this model
Conrad C62This CONRAD C62 water mist generator · 11 December 2020

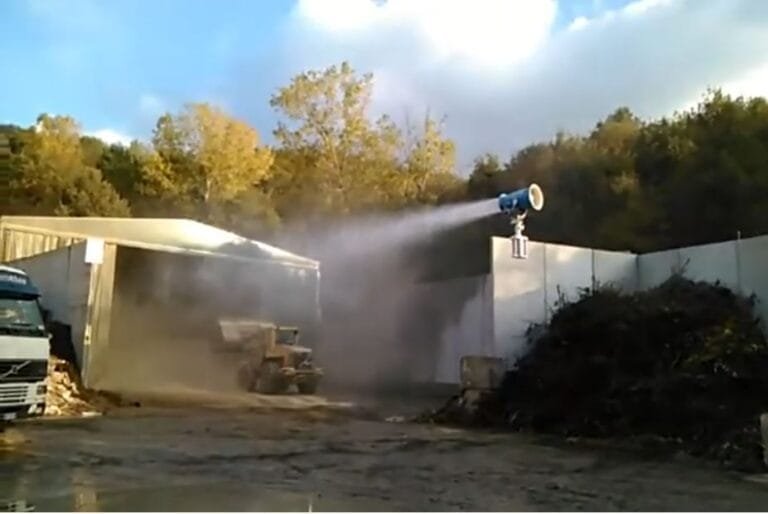

Woodworking with the CONRAD C62 – Urbania
Read
Conrad C62The CONRAD C62 dust suppression cannon on · 11 December 2020

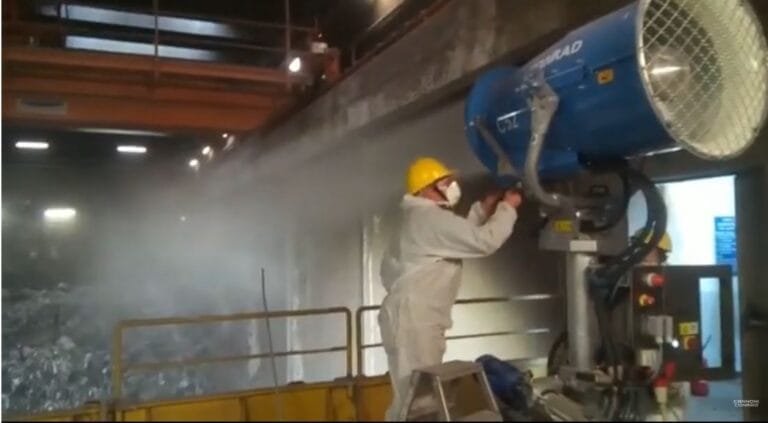

Waste Management in Ferrara with CONRAD C62
Read
Conrad C62The CONRAD C62 dust suppressor · 11 December 2020

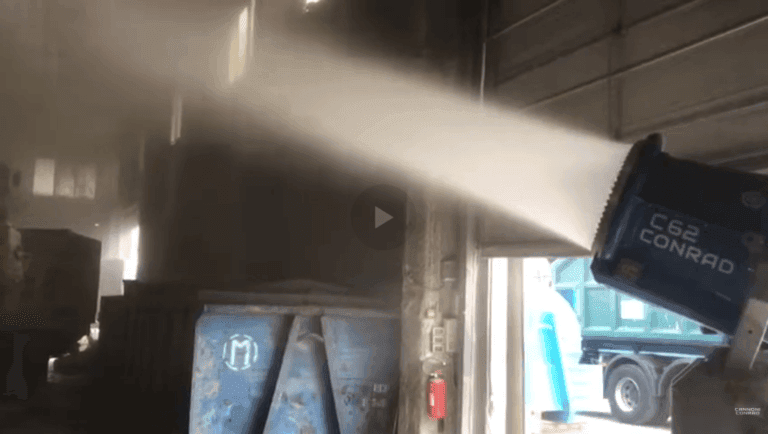

CONRAD C62 at a landfill site in Prato – Italy
