#01 Stand-alone Station
- Dust Suppression Cannon: Phoenix Plus
- Tank capacity: 1000L
- Generator set: Mosa
- Handling: Inforcible
- Automation: Integrated PLC
- Home
- Autonomous Stations
- #18 Stand-alone Station
#18 Stand-alone Station
7.500m²Covered area
50mRange
3000-5000lTank
18-33l/minConsumo acqua
Set up
Tutto su un unico skid

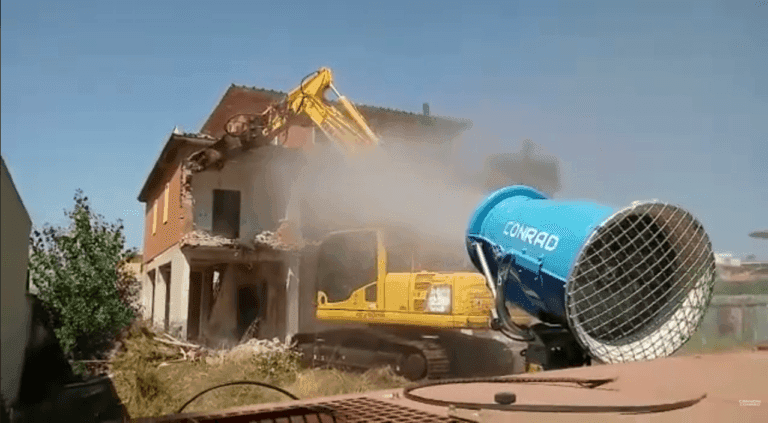

The Conrad C50 is a dust suppression cannon with a range of 50 metres, designed to solve the problem of dust production on construction sites, quarries, steelworks and cement factories.
Equipped with a dosing pump, it is a valuable ally for odour reduction in landfills, anaerobic digestion sites, compost heaps and the waste sector in general.
- Dust Suppression Cannon: C50
- Generator set: Integrated
- Handling: Trainable
- Automation: Integrated PLC
Componenti
7.500m²area coperta
Details
Fatto per il cantiere
Technical specifications
Scheda riassuntiva
7,500 m²Covered area
50 mRange
18-33 l/minConsumo acqua
Documents
Technical data sheetPDF · 124.8 KBScarica| Dust Suppression Cannon | C50 |
|---|---|
| Tank capacity | 3000L or 5000L |
| Generator Set | Integrated |
| Handling | Trainable |
| Automation | Integrated PLC |
| Range | 50 m |
| N. Nozzles | 60 - selectable in groups of 20|20 |
| Crowns | 1 aluminium crown - heated with electrical resistance for sub-zero operation. |
| PLC automation | integrated PLC electronics, Headlight switch-on, Water pump switch-on, Crown heater switch-on, Fan switch-on, Pause/Work function, Rotation setting from 0° to 340°, Articulated boom up/down, Daily and weekly timer, selectable active nozzles |
| Rotation | 340° automatic with servo motor |
| Inclination | -20° +45° automatic |
| Ascent / Descent | only with articulated boom set-up - reachable working height 5.5 m |
| Pressure | 10-15 bar, 50-60 bar |
| Water Consumption | 18-21 l/min, 33 l/min |
| IP | 55 |
| Noise | 70 dB |
| Covered Area | 7500 m² |
| Fan power | 5.5 Kw-400V-50Hz |
| Ø FAN | 660 mm |
| Total installed power | 8 kW |
| Water Filter | Inspectable stainless steel filter |
| Filtering capacity | 100 µm |
| Water connection | 1 ½ " - Camlock |
| Water pump included | Self-priming vertical multistage centrifugal electric pump for gravity operation. No inlet water pressure required |
| Electrical connection | CEE 32A 3P+N+E |
| Available options | Industry 4.0 kit, Pressure washer lance kit with 10 m of connected high pressure hoses, Dosing pump for odour abatement, Remote control |
Altre stazioni autonome
HYDRA Stand-alone Station
- Dust Suppression Cannon: Phoenix Power
- Tank capacity: 1000L
- Generator set: 10Kva - Petrol
- Handling: Inforcible
- Automation: Telescopic Pole 5m with Rotation
#13 Stand-alone Station
- Dust Suppression Cannon: C32
- Tank capacity: 3000L / 5000L / 8000L
- Generator set: Integrated
- Handling: Inforcible
- Automation: Integrated PLC
From the building site
Articles about this model
Quotation
Request a quote
Use this form to request information about a dust suppression cannon or to get a quote straight away for the dust you need to control on your building site. We’ll be in touch as soon as possible!
