The best solution for dust and odour suppression at landfills and waste recycling sites, minimising water consumption
More than 40 m of jet powered by a high-quality high-pressure pump.

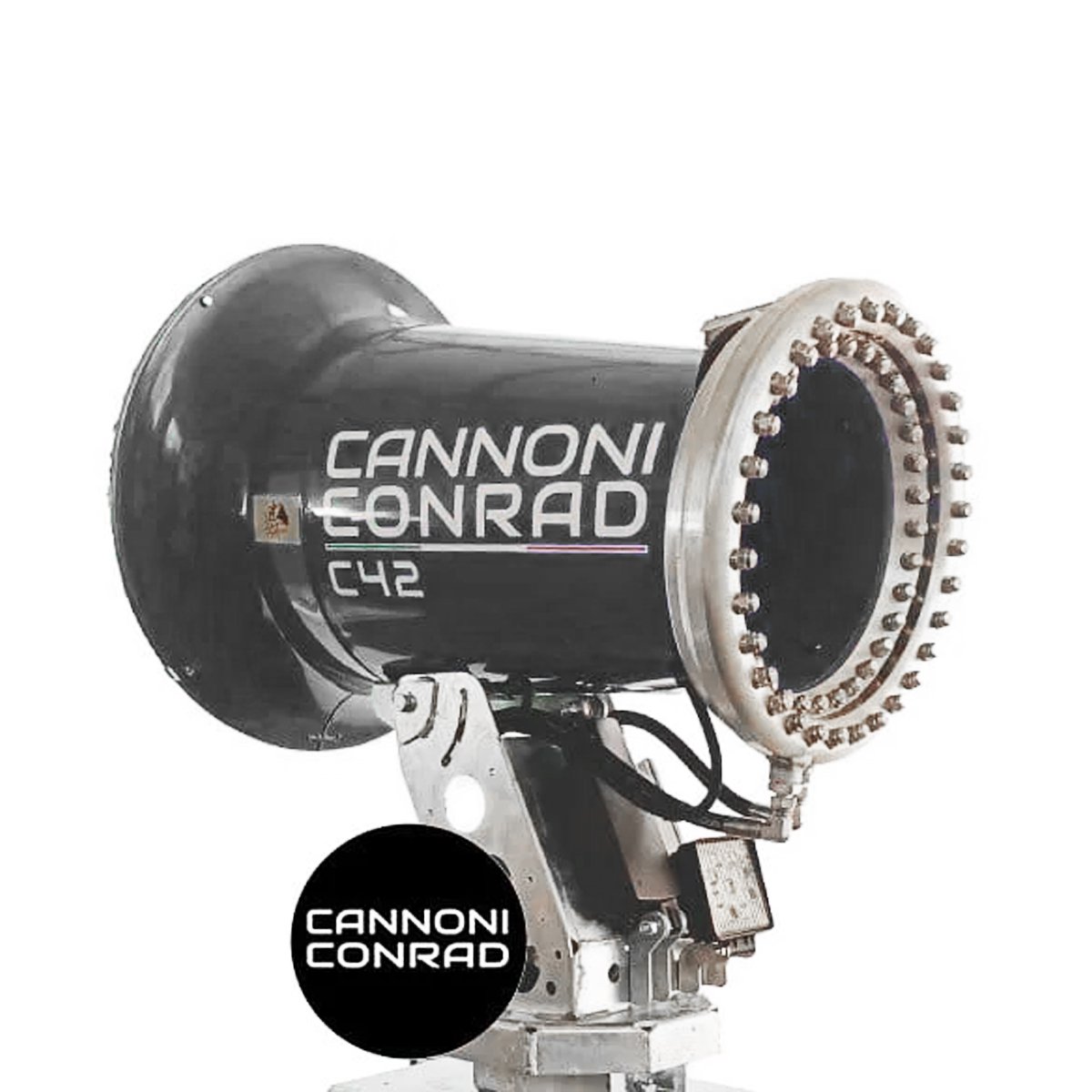

The CONRAD C42 mobile atomising cannon, mounted on a TROLLEY to enable dust suppression at temporary construction sites or in places of activity where the origin of dust may vary over time.
The Conrad C42 cannon has a range of 40 metres, and the trolley set-up makes it the ideal product to rent for medium to long periods.
The CONRAD C42 spray gun is certainly the flagship of our range because the pantograph arm allows the sprayer to reach precise points for effective dust suppression.
Perfect in any situation, but certainly suitable for: landfills and reclamation.
The CONRAD C42 Spray Cannon is suitable for construction sites and fixed work sites, where dust lifting is localised to precise areas, such as loading and unloading aggregates.
The tower-mounted model is equipped with compartments for lifting with a forklift, so it is easily transportable if the powder production position is changed.
The CONRAD filtration system for incoming water is the best on the market and uses a Stainless steel filter cartridge, length 500 mm x 80 mm diameter. Inspectable triple-mesh stainless steel filter.
This allows you to use any type of water to feed the cannon: industrial, well, VVF ring, purifier, aqueduct, rain collection...
All CONRAD cannons are equipped with a vertical and self-priming pump for gravity feeding, therefore no inlet water pressure is required.
| Range | 40 m |
|---|---|
| N. Nozzles | 64 - selectable 32|32 |
| Crowns | 2 aluminium crowns - heated with electrical resistance for sub-zero operation. |
| PLC automation | integrated PLC electronics, Headlight switch-on, Water pump switch-on, Crown heater switch-on, Fan switch-on, Pause/Work function, Rotation setting from 0° to 340°, Articulated boom up/down, Daily and weekly timer, selectable active nozzles |
| Rotation | 340° automatic with servo motor |
| Inclination | -20° +45° automatic |
| Fan power | 3 Kw-400V-50Hz |
| Total installed power | 8 kW |
| Ascent / Descent | only with articulated boom set-up - reachable working height 5.5 m |
| Ø FAN | 410 mm - 3200 rpm |
| Pressure | 50 - 60 bar - integrated high-pressure pump |
| Water Consumption | 18-21 l/min |
| IP | 65 |
| Covered Area | 4700 m² |
| Noise | 70 dB |
| Water Filter | Inspectable stainless steel filter |
| Filtering capacity | 250 µM 60 mesh, 100 µm |
| Water connection | 1 ½ " - Camlock |
| Water pump included | Self-priming vertical multistage centrifugal electric pump for gravity operation. No inlet water pressure required |
| Electrical connection | CEE 32A 3P+N+E |
| Available options | Industry 4.0 kit, Pressure washer lance kit with 10 m of connected high pressure hoses, Dosing pump for odour abatement, Remote control |
Spray cannons designed to cover all needs on the toughest job sites by abating dust and odours:
QUARRIES - MINES - CONSTRUCTION SITES - DEMOLITION - AGGREGATES FROM CEMENT AND STEEL WORKS - RECYCLING - WASTE DUMPS - ODOUR ELIMINATION IN LANDFILLS - WOOD AND ALUMINIUM PROCESSING SITES - ENVIRONMENTAL REPAIRS - COOLING OF STADIUMS AND PARKS.
