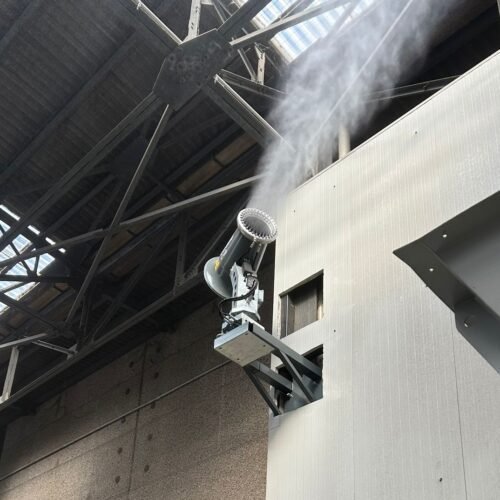

The CONRAD Titan spray gun is available in two versions with ranges of 25 and 35 metres respectively, and is ideal for dust and odour control in various industrial environments and construction sites.
It features automatic rotation up to 230° and electric vertical tilting up to +45°, facilitating jet orientation.
Equipped with IP67 LED lights for night operations and transportable on 4 wheels with retractable handles, it ensures maximum ease of use and mobility. The integral ceramic 3-piston pump ensures effective atomisation without the need for inlet water pressure.
We have provided two fittings for TITAN so that you can choose the model that best suits your needs:
PLUS version with 25 metres of range
POWER version with 35 metres of range.
The CONRAD TITAN comes standard with a simple but effective control box with the following controls:
The TITAN model is also equipped with IP67 lights to ensure efficiency even during low-light operations. In fact, thanks to the LED spotlights, the spray beam is illuminated, allowing operators to work with precision.
TITAN is equipped with an automatic rotation system that can be easily set without the need for a PLC
Automatic rotation is adjustable from 0° to 230°.
We have included a second automatism, the vertical inclination of the cannon by means of an electric button to speed up the aiming of the cannon upwards.
Retractable handles are also always present on TITAN and are intended to improve the ground movement of the gun. In addition to the tyred wheels, we have also fitted two swivel wheels to make handling easier.
Two components need proper cleaning and maintenance: the nozzles and the water filter. Use these two video guides to keep your Conrad Cannon at its best.
| Range | PLUS version: up to 25 m, POWER version: up to 35 m |
|---|---|
| N. Nozzles | 4, 20 |
| Inclination | + 45° electric |
| Pressure | 50-60 bar |
| Noise | 70 dB |
| IP | 55 |
| Ø FAN | 410 mm |
| Water Consumption | 8 l/min |
| Water pump included | 3-piston pump with crank-rod system. Integral ceramic pistons. No inlet water pressure required |
| Water connection | ¾"male |
| Electrical connection | CEE 32A |
| Size and Weight | 140x80xh160 cm - 215/220 kg |
| Fan power | 1 kW, 2.2 kW |
| Commands | Control box: fan ON/OFF, pump ON/OFF, range controller, LED light ON/OFF, emergency mushroom, manual or automatic rotation, electric tilting |
