Dust Suppressor C72

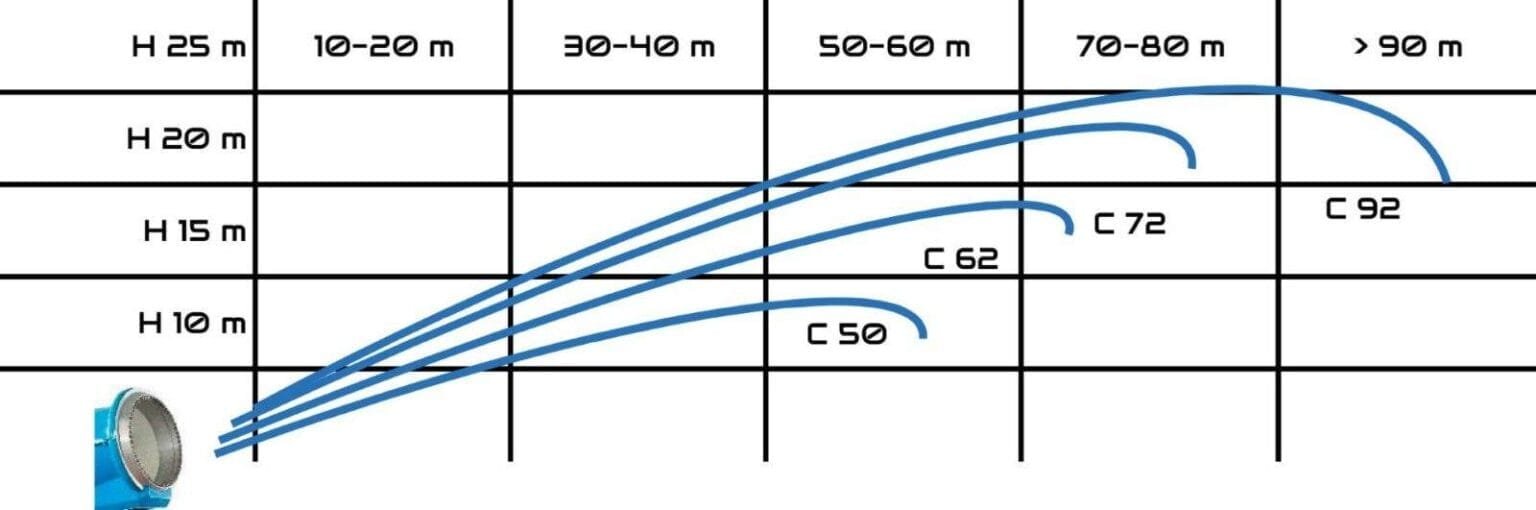

An unrivaled combination. All the nebulizing power of C62, pushed even further by a High-pressure 60 bar pump, to reach a more than 70 m throw.
- 2 aluminum crowns heated with electric resistance for sub-zero operation.

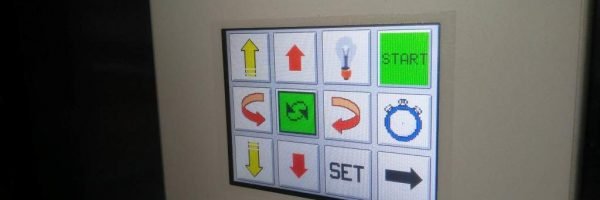

- Integrated electronic PLC to control all automatisms with an intuitive touch screen panel:
- control rotation from 0° to 340°;
- control tilt angle from -20° to + 45°;
- selection of nozzles in action;
- articulated arm up/down movement;
- weekly work programming (3 daily start / stop cycles).
- Automatic water emptying (avoidable function)
- Type of nebulization settings:
- thin nebulization (for wood dust or similar)
- thicker nebulization (perfect for demolitions)
- Odor suppression: electric metering pump for mixing the chemical product for odor control (chemical product not included)
- Radio Remote control ON-OFF radio-remote control with 12 function buttons, battery charger. Range distance 100 m.
- Anemometer integrated with PLC.
- Customized turbine color.
- Atex components on request based on the level required.
WATER and CANNONI CONRAD
CONRAD filtration system for incoming water is the best on the market and uses a stainless steel filter cartridge, 500 mm length x 80 mm diameter. Inspectable triple micro-mesh stainless steel filter.
This allows you to use any type of water to feed the cannon: industrial, well, VVF ring, purifier, aqueduct, rain collection…
All CONRAD cannons are equipped with a vertical and self-priming pump for gravity feeding, therefore no inlet water pressure is required.
Water nebulizer CONRAD C72 to reduce dust from sand and aggregates. Conrad C72 with high-pressure pump, 60 nozzles, 70 meters water throwing on steel pole positioned 30 meters high. Avellino – Italy
